ASMB-MTB0-0A3A2 - Avago Technologies

Description: LED Tri-Color Blue/Green/Red 465nm/522nm/634nm Chip LED 4-Pin PLCC - Tape and Reel

Download ASMB-MTB0-0A3A2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

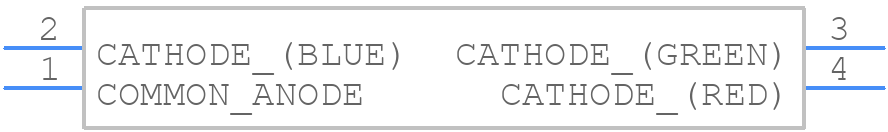

ASMB-MTB0-0A3A2 - Avago Technologies - PCB symbol
click to zoom
PCB Footprints
ASMB-MTB0-0A3A2 - Avago Technologies PCB footprint - Other - Other - ASMB-MTB0-0A3A2-3
click to zoom
3D Models
ASMB-MTB0-0A3A2 - Avago Technologies - 3D model - Other - ASMB-MTB0-0A3A2-3
click to zoom

ASMB-MTB0-0A3A2 Details

  • Manufacturer Part Number:

    ASMB-MTB0-0A3A2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    0

  • Color:

    RED/GREEN/BLUE

  • Configuration:

    COMMON ANODE, 3 ELEMENTS

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    2.6 V

  • JESD-609 Code:

    e4

  • Lens Type:

    DIFFUSED

  • Luminous Intensity-Nom:

    540.0/1600.0/350.0 mcd

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRIPLE COLOR LED

  • Overall Height:

    1.9 mm

  • Packing Method:

    TR, 7 INCH

  • Peak Wavelength:

    634/522/465 nm

  • Reverse Voltage-Max:

    4 V

  • Shape:

    ROUND

  • Size:

    2.4 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    SILVER

  • Terminal Pitch:

    1.5 mm

  • Viewing Angle:

    115 deg
