ASMT-FG10-NFJ00 - Avago Technologies

Description: Broadcom ASMT-FG10-NFJ00 Green LED, 530 nm 6-Pin, Dome Lens SMD package

Download ASMT-FG10-NFJ00 Model
Schematic

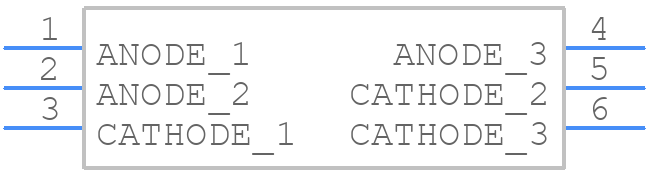

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ASMT-FG10-NFJ00 - Avago Technologies PCB footprint - Other - Other - ASMT-FG10-NFJ00-1
click to zoom
3D Models
ASMT-FG10-NFJ00 - Avago Technologies  - 3D model - Other - ASMT-FG10-NFJ00-1
click to zoom

ASMT-FG10-NFJ00 Details

  • Manufacturer Part Number:

    ASMT-FG10-NFJ00

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    4.80 X 4.80 MM, 5.33 MM HEIGHT, ROHS COMPLIANT PACKAGE-6

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    0

  • Color:

    GREEN

  • Color@Wavelength:

    Blue-Green

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.02 A

  • Forward Voltage-Max:

    3.9 V

  • JESD-609 Code:

    e3

  • Lens Type:

    CLEAR NONDIFFUSED

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    SINGLE COLOR LED

  • Overall Height:

    5.33 mm

  • Packing Method:

    TR

  • Peak Wavelength:

    525 nm

  • Shape:

    ROUND

  • Size:

    4.32 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Viewing Angle:

    11 deg
