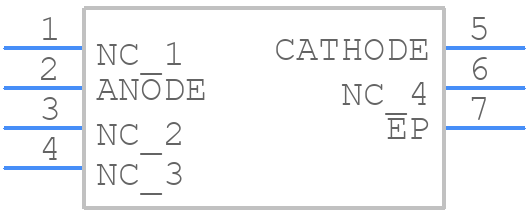

ASMT-JB11-NNQ01 footprint, schematic symbol and 3D model by Avago Technologies

Symbol

PCB Footprints

3D Models

ASMT-JB11-NNQ01 Details

The recommended operating temperature range for the ASMT-JB11-NNQ01 is -40°C to 125°C.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow.
The maximum allowable voltage for the ASMT-JB11-NNQ01 is 3.6V, with a recommended operating voltage range of 2.97V to 3.63V.
To handle ESD protection for the ASMT-JB11-NNQ01, follow proper handling and storage procedures, use ESD-protective packaging, and implement ESD protection circuits in your design.
The typical power consumption of the ASMT-JB11-NNQ01 varies depending on the operating mode and frequency. Refer to the datasheet for specific power consumption values.
