ASMT-JB31-NNP01 - Avago Technologies

Description: Broadcom ASMT-JB31-NNP01 Blue LED, 460 nm 6-Pin, Round Lens SMD package

Download ASMT-JB31-NNP01 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

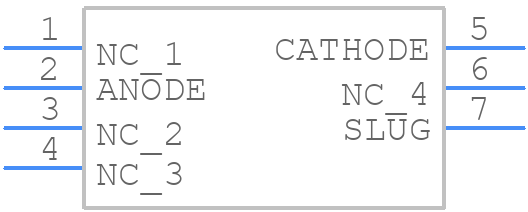

ASMT-JB31-NNP01 - Avago Technologies - PCB symbol
click to zoom
PCB Footprints
ASMT-JB31-NNP01 - Avago Technologies PCB footprint - Other - Other - ASMT-JB31-NNP01-1
click to zoom
3D Models
ASMT-JB31-NNP01 - Avago Technologies - 3D model - Other - ASMT-JB31-NNP01-1
click to zoom

ASMT-JB31-NNP01 Details

  • Manufacturer Part Number:

    ASMT-JB31-NNP01

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-6

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    7

  • Color:

    BLUE

  • Color@Wavelength:

    Blue

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.7 A

  • Forward Voltage-Max:

    3.6 V

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    SINGLE COLOR LED

  • Overall Height:

    1.85 mm

  • Packing Method:

    TR, 7 INCH

  • Peak Wavelength:

    454 nm

  • Shape:

    ROUND

  • Size:

    3.7 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Silver (Ag)

  • Terminal Pitch:

    1.3 mm

  • Viewing Angle:

    165 deg

ASMT-JB31-NNP01 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the ASMT-JB31-NNP01 is -40°C to 125°C.
  • To configure the ASMT-JB31-NNP01 for optimal performance, refer to the application note AN2211, which provides detailed guidelines for configuration, layout, and thermal management.
  • The maximum current rating for the ASMT-JB31-NNP01 is 3A per channel, with a total current rating of 6A for the entire device.
  • To troubleshoot issues with the ASMT-JB31-NNP01, refer to the troubleshooting guide provided in the datasheet, which covers common issues and their solutions. Additionally, Broadcom Limited provides technical support and resources on their website.
  • Yes, the ASMT-JB31-NNP01 is compatible with lead-free soldering, and it meets the requirements of the RoHS (Restriction of Hazardous Substances) directive.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ASMT-JB31-NNP01 Overview

Use the download button to access the ASMT-JB31-NNP01 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ASMT-, or try a keyword search, such as Visible LEDs
