The recommended torque for the screws on the ASP-137968-01 connector is 0.5-1.5 N·m (4-12 in-lbs). However, it's essential to consult the specific screw type and material used in your application to ensure the correct torque value.
Yes, the ASP-137968-01 connector is designed to withstand vibrations. Samtec Inc. recommends following the guidelines in their 'Vibration Testing' application note (AN-11) to ensure the connector meets the specific vibration requirements of your application.
The ASP-137968-01 connector has an operating temperature range of -55°C to +125°C. However, it's essential to consider the temperature rating of the specific materials used in your application, as they may have different temperature limitations.
Yes, the ASP-137968-01 connector is compatible with lead-free soldering processes. Samtec Inc. recommends following the guidelines in their 'Lead-Free Soldering' application note (AN-14) to ensure successful assembly.
The ASP-137968-01 connector has a moisture sensitivity level (MSL) rating of 1, which means it can withstand normal humidity levels. However, for applications in extremely humid or wet environments, additional protection measures, such as conformal coating or sealing, may be necessary.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ASP-137968-01 Overview

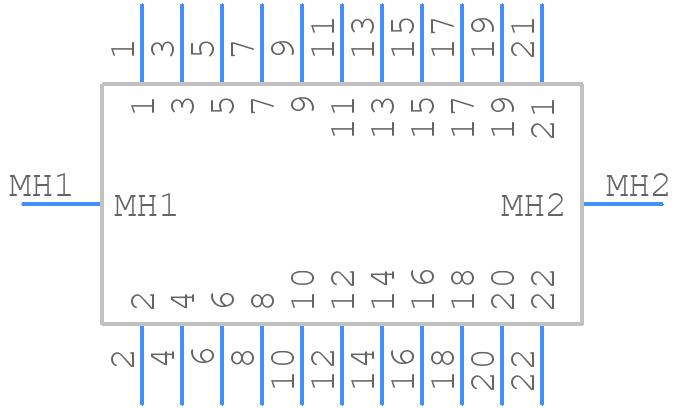

Use the download button to access the ASP-137968-01 schematic symbol, PCB footprint, and 3D model.
