ASP-184330-01 footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

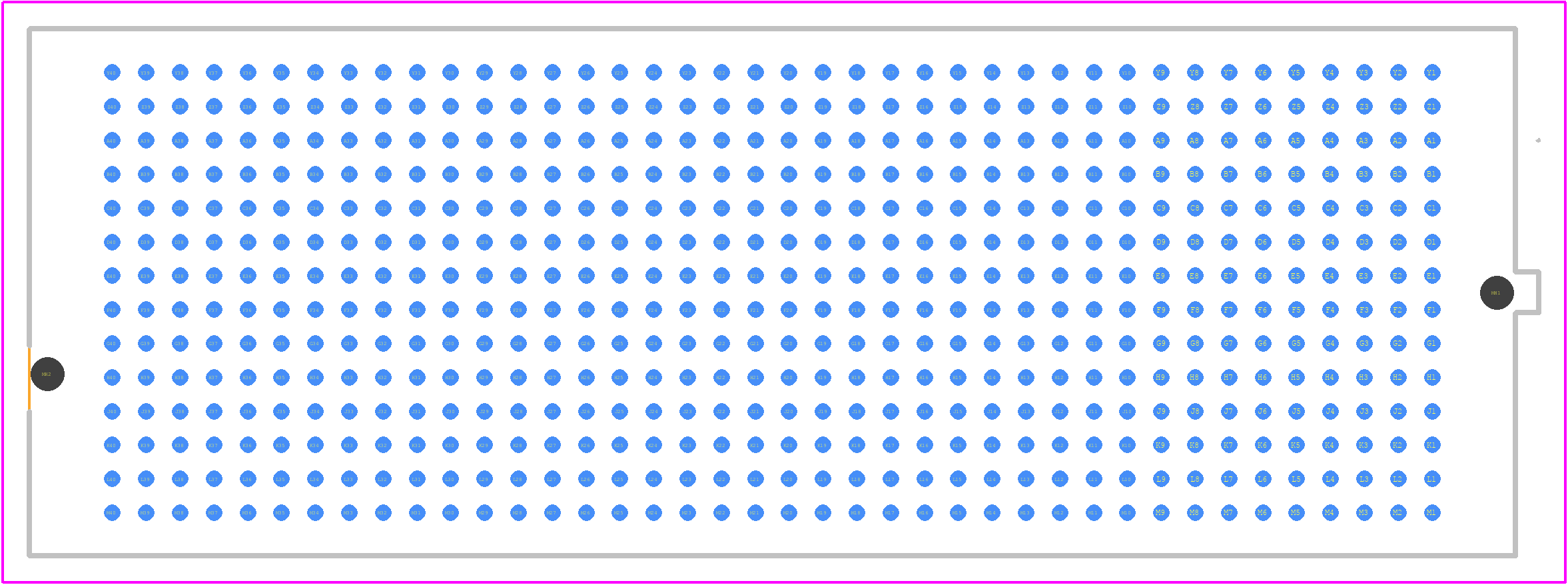

PCB Footprints

ASP-184330-01 - SAMTEC PCB footprint - Other - Other - ASP-184330-01-3

click to zoom

3D Models

ASP-184330-01 - SAMTEC - 3D model - Other - ASP-184330-01-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ASP-184330-01
Part Number ASP-184330-01
Manufacturer SAMTEC
Pin Count 560
Part Category Connector
Package Category Other
Footprint Name Other - ASP-184330-01-3
Released Date May 22, 2019
Last Modified Date Dec 25, 2024 5:57 AM UTC
Pinout / Pin List Click Here (Member Only)

ASP-184330-01 Details

Manufacturer Part Number:
ASP-184330-01
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
2 Weeks, 1 Day
Manufacturer:
Samtec Inc
YTEOL:
8.75
Body Breadth:
0.778 inch
Body Depth:
0.28 inch
Body Length:
2.196 inch
Connector Type:
BOARD STACKING CONNECTOR
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Pattern:
RECTANGULAR
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Contact Pitch:
0.05 inch
Mating Contact Row Spacing:
0.05 inch
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
14
Number of Rows Loaded:
14
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
1.27 mm
Terminal Pitch:
1.27 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
560
UL Flammability Code:
94V-0

ASP-184330-01 Frequently Asked Questions (FAQs)

The recommended torque for the screws on the ASP-184330-01 is 0.5-1.5 Nm (4-12 in-lbs). However, it's essential to consult the specific screw type and material used in your application to ensure the correct torque specification.
Yes, the ASP-184330-01 is designed to withstand high-vibration environments. Samtec's ASP series is known for its ruggedness and can operate in environments with vibrations up to 20 G's. However, it's crucial to ensure proper mounting and screw torque to maintain the connector's integrity.
The ASP-184330-01 has an operating temperature range of -55°C to 125°C (-65°F to 257°F). However, it's essential to note that the temperature range may vary depending on the specific application and environmental conditions.
Yes, the ASP-184330-01 is compatible with lead-free soldering processes. Samtec's ASP series is designed to meet the requirements of lead-free soldering, and the connector's materials are compatible with the higher temperatures required for lead-free soldering.
The ASP-184330-01 has a mating cycle life of 500 cycles minimum. However, the actual mating cycle life may vary depending on the application, usage, and environmental conditions.

Trust Checks

Community Provided

System Verified

Community Approved

ASP-184330-01 Overview

Use the download button to access the ASP-184330-01 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ASP-1, or try a keyword search, such as Headers and Edge Type Connectors
