ASP-187091-01 - SAMTEC

Description: SSH SOCKET ASSEMBLY

Download ASP-187091-01 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

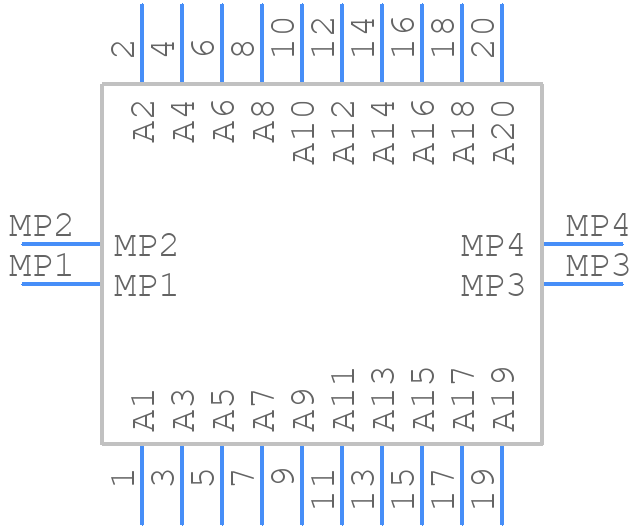

ASP-187091-01 - SAMTEC - PCB symbol
click to zoom
PCB Footprints
ASP-187091-01 - SAMTEC PCB footprint - Other - Other - ASP-187091-01-5
click to zoom
3D Models
ASP-187091-01 - SAMTEC - 3D model - Other - ASP-187091-01-5
click to zoom

ASP-187091-01 Details

  • Manufacturer Part Number:

    ASP-187091-01

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Costa Rica, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    2 Weeks, 1 Day

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    8.68

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.185 inch

  • Body Depth:

    0.072 inch

  • Body Length:

    0.448 inch

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Gender:

    FEMALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    CENTRONIC

  • Filter Feature:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • Mating Contact Pitch:

    0.02 inch

  • Mating Information:

    MULTIPLE MATING PARTS ARE AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Plating Thickness:

    10u inch

  • Rated Current (Signal):

    1.8 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.5 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    20

ASP-187091-01 Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the ASP-187091-01 is 6-8 in-lbs (0.7-0.9 Nm). It's essential to follow the recommended torque to ensure proper seating and prevent damage to the connector.
  • Yes, the ASP-187091-01 is designed to withstand high-vibration environments. Samtec's ASP series is known for its ruggedness and can operate in applications with vibrations up to 20 G's.
  • The ASP-187091-01 has an operating temperature range of -55°C to 125°C (-67°F to 257°F). However, it's essential to note that the temperature range may vary depending on the specific application and environmental conditions.
  • Yes, the ASP-187091-01 is compatible with lead-free soldering processes. Samtec's ASP series is designed to meet the requirements of lead-free soldering, making it suitable for RoHS-compliant applications.
  • The ASP-187091-01 has a mating cycle life of 500 cycles minimum. This means the connector can withstand at least 500 mating cycles without compromising its performance or reliability.
