The recommended torque for the screws on the ASP-187092-01 is 0.5-1.5 Nm (4-12 in-lbs). However, it's essential to consult the specific screw type and material used in your application to ensure the correct torque specification.
Yes, the ASP-187092-01 is designed to withstand high-vibration environments. Samtec's ASP series is known for its ruggedness and can operate in environments with vibrations up to 20 G's. However, it's crucial to ensure proper mounting and screw torque to maintain the connector's integrity.
The ASP-187092-01 has an operating temperature range of -55°C to 125°C (-65°F to 257°F). However, it's essential to consider the specific application and potential thermal stresses that may affect the connector's performance.
Yes, the ASP-187092-01 is compatible with lead-free soldering processes. Samtec's ASP series is designed to meet the requirements of lead-free soldering, and the connector's materials are compatible with the higher temperatures associated with lead-free soldering.
The ASP-187092-01 has a mating cycle life of 500 cycles minimum. However, this can vary depending on the application, mating force, and environmental conditions. It's essential to consult Samtec's documentation and application notes for more information.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ASP-187092-01 Overview

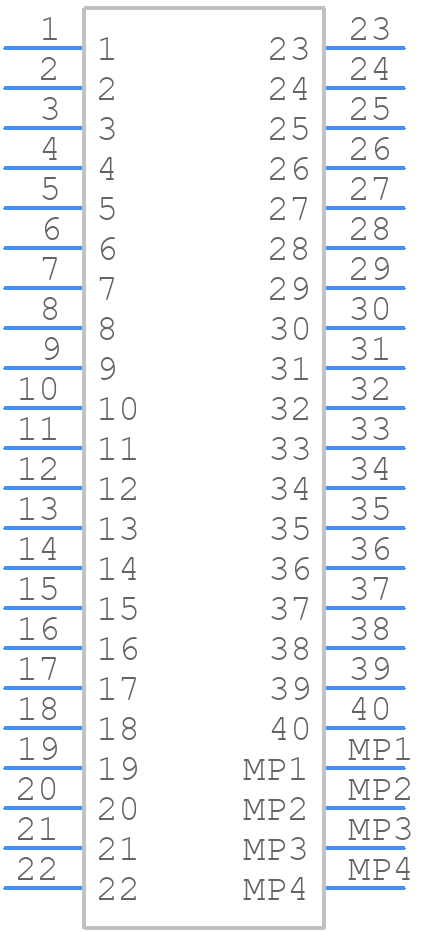

Use the download button to access the ASP-187092-01 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ASP-1,
or try a keyword search, such as Headers and Edge Type Connectors
