The recommended torque for the screws on the ASP-208573-01 connector is 0.5-1.5 N·m (4-12 in-lbs). However, it's essential to consult the specific screw type and material used in your application to ensure the correct torque value.
Yes, the ASP-208573-01 connector is designed to withstand vibration and shock. Samtec's ASP series connectors have undergone rigorous testing, including vibration testing per IEC 60068-2-6, to ensure reliable performance in demanding environments.
The ASP-208573-01 connector has an operating temperature range of -40°C to +125°C (-40°F to +257°F). However, it's essential to consider the temperature rating of the specific materials used in your application, as well as any potential thermal gradients or hotspots.
Yes, the ASP-208573-01 connector is compatible with lead-free soldering processes. Samtec's ASP series connectors are designed to meet the requirements of lead-free soldering, and they can withstand the higher temperatures associated with these processes.
The recommended mating cycle for the ASP-208573-01 connector is 500 cycles minimum. However, the actual mating cycle may vary depending on the specific application, usage, and environmental conditions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ASP-208573-01 Overview

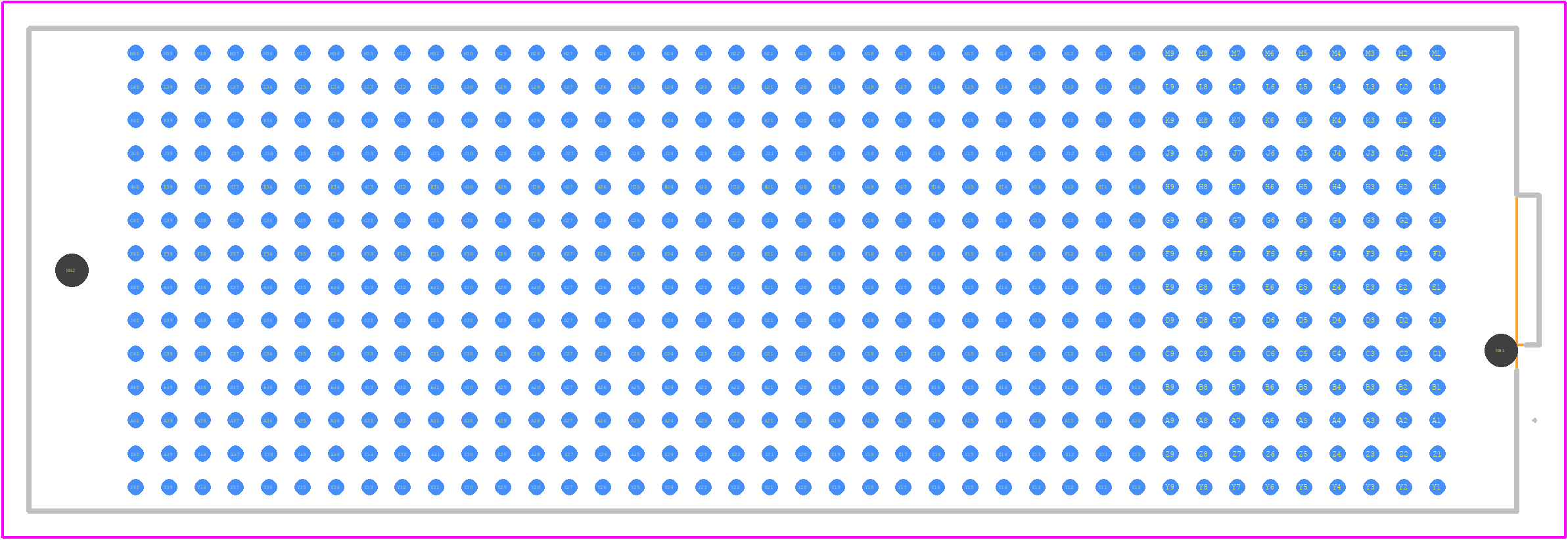

Use the download button to access the ASP-208573-01 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ASP-2,
or try a keyword search, such as Headers and Edge Type Connectors
