ASP-209946-01 - SAMTEC

Description: 400 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold

Download ASP-209946-01 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ASP-209946-01 - SAMTEC - PCB symbol
click to zoom
PCB Footprints

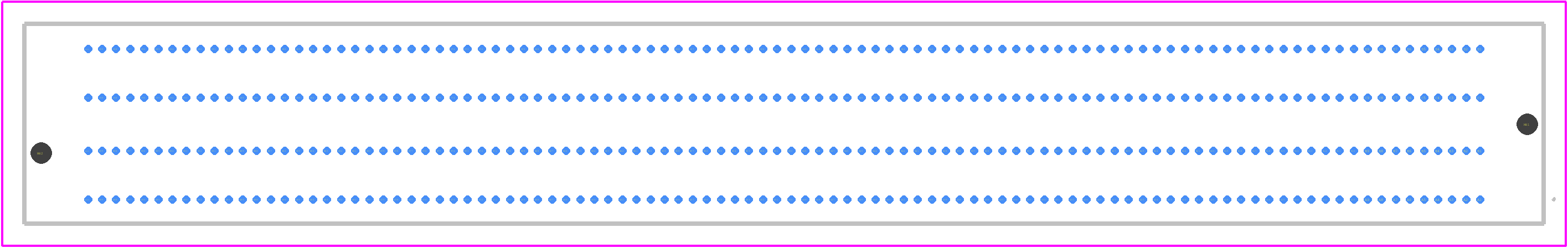

ASP-209946-01 - SAMTEC PCB footprint - Other - Other - ASP-209946-01-2
click to zoom
3D Models
ASP-209946-01 - SAMTEC - 3D model - Other - ASP-209946-01-2
click to zoom

ASP-209946-01 Details

  • Manufacturer Part Number:

    ASP-209946-01

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    1 Week

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.354 inch

  • Body Depth:

    0.152 inch

  • Body Length:

    2.701 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Gender:

    FEMALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    BELLOWED TYPE

  • Filter Feature:

    NO

  • Insulator Color:

    NATURAL

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • Mating Contact Pitch:

    0.025 inch

  • Mating Contact Row Spacing:

    0.087 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    4

  • Number of Rows Loaded:

    4

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.2 mm

  • Plating Thickness:

    10u inch

  • Polarization Key:

    POLARIZATION NOTCH

  • Terminal Pitch:

    0.635 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    400

ASP-209946-01 Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the ASP-209946-01 is 0.5-1.5 Nm (4-12 in-lbs).
  • Yes, the ASP-209946-01 is designed to withstand high-vibration environments. However, it's recommended to follow Samtec's guidelines for vibration testing and to consult with a Samtec representative for specific application guidance.
  • The operating temperature range for the ASP-209946-01 is -40°C to 125°C (-40°F to 257°F).
  • Yes, the ASP-209946-01 is compatible with lead-free soldering processes. Samtec recommends following the recommended soldering profile and guidelines for lead-free soldering.
  • The ASP-209946-01 is designed to operate in a variety of environments, but it's recommended to consult with a Samtec representative for specific guidance on using the product in harsh environments. Additional coatings or treatments may be necessary to ensure reliability.
