ASP-214802-01 footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

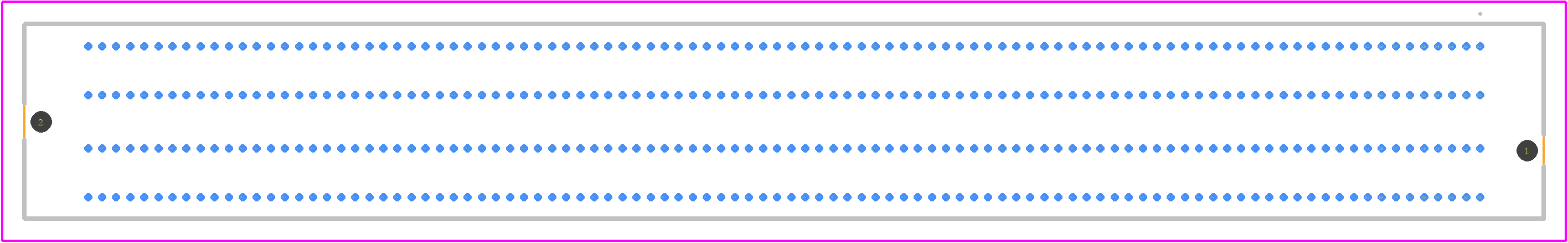

ASP-214802-01 - SAMTEC PCB footprint - Other - Other - ASP-214802-01-3

click to zoom

3D Models

ASP-214802-01 - SAMTEC - 3D model - Other - ASP-214802-01-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ASP-214802-01
Part Number ASP-214802-01
Manufacturer SAMTEC
Pin Count 400
Part Category Connector
Package Category Other
Footprint Name Other - ASP-214802-01-3
Released Date Oct 13, 2024
Last Modified Date Oct 13, 2024 7:15 AM UTC
Pinout / Pin List Click Here (Member Only)

ASP-214802-01 Details

Manufacturer Part Number:
ASP-214802-01
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
1 Week
Manufacturer:
Samtec Inc
YTEOL:
9
Board Mounting Option:
PEG
Body Breadth:
0.344 inch
Body Depth:
0.159 inch
Body Length:
2.701 inch
Connector Type:
BOARD CONNECTOR
Contact Gender:
MALE
Contact Pattern:
RECTANGULAR
Contact Style:
BELLOWED TYPE
Filter Feature:
NO
Insulator Color:
NATURAL
Insulator Material:
LIQUID CRYSTAL POLYMER
Mating Contact Pitch:
0.025 inch
Mating Contact Row Spacing:
0.087 inch
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
4
Number of Rows Loaded:
4
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
2.2 mm
Plating Thickness:
10u inch
Polarization Key:
POLARIZING PEG
Terminal Pitch:
0.635 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
400

ASP-214802-01 Frequently Asked Questions (FAQs)

The recommended torque for the screws on the ASP-214802-01 is 0.5-1.5 Nm (4-12 in-lbs). However, it's essential to consult the specific screw type and material used in your application to ensure the correct torque value.
Yes, the ASP-214802-01 is designed to withstand high-vibration environments. Samtec's ASP series is known for its ruggedness and can operate in environments with vibrations up to 20 G's. However, it's crucial to ensure proper mounting and screw torque to maintain the connector's integrity.
The ASP-214802-01 has an operating temperature range of -55°C to 125°C. However, it's essential to note that the temperature rating may vary depending on the specific application and environmental conditions.
Yes, the ASP-214802-01 is compatible with lead-free soldering processes. Samtec's ASP series is designed to meet the requirements of lead-free soldering, and the connector's materials are compatible with the higher temperatures required for lead-free soldering.
The ASP-214802-01 has a mating cycle life of 500 cycles minimum. However, this value may vary depending on the specific application, environmental conditions, and usage patterns.

Trust Checks

Community Provided

System Verified

Community Approved

ASP-214802-01 Overview

Use the download button to access the ASP-214802-01 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ASP-2, or try a keyword search, such as Headers and Edge Type Connectors
