- Part Number ASR433.42E-T
- Manufacturer ABRACON
- Pin Count 8
- Part Category Crystal or Oscillator
- Package Category Other
- Footprint Name Other - 8-SMD
- Released Date Oct 25, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
ASR433.42E-T Details
-
Manufacturer Part Number:
ASR433.42E-T
-
Rohs Code:
Yes
-
Part Life Cycle Code:
End Of Life
-
Package Description:
SMD, 8 PIN
-
Factory Lead Time:
16 Weeks
-
Manufacturer:
Abracon Corporation
-
YTEOL:
0
-
Crystal/Resonator Type:
1-PORT
-
Frequency Stability:
0.0133%
-
Frequency Tolerance (MHz):
0.075
-
Insertion Loss:
2.5 dB
ASR433.42E-T Frequently Asked Questions (FAQs)
-
Abracon recommends following the IPC-7351B standard for the PCB land pattern, which can be found in the Abracon Application Note AN-03.
-
Proper thermal management can be achieved by providing a thermal pad on the PCB, using a thermal interface material (TIM) between the device and the heat sink, and ensuring good airflow around the device.
-
The ASR433.42E-T can operate from -40°C to +125°C, but the recommended operating temperature range is -20°C to +85°C for optimal performance and reliability.
-
Yes, the ASR433.42E-T is designed to withstand high-vibration environments, but it's essential to follow proper mounting and soldering techniques to ensure the device remains securely attached to the PCB.
-
Abracon recommends following proper ESD handling procedures, such as using an ESD wrist strap, ESD mat, and ESD-safe packaging, to prevent damage to the device.
Trust Checks
Expert Contribution
System Verified
Community Approved
ASR433.42E-T Overview

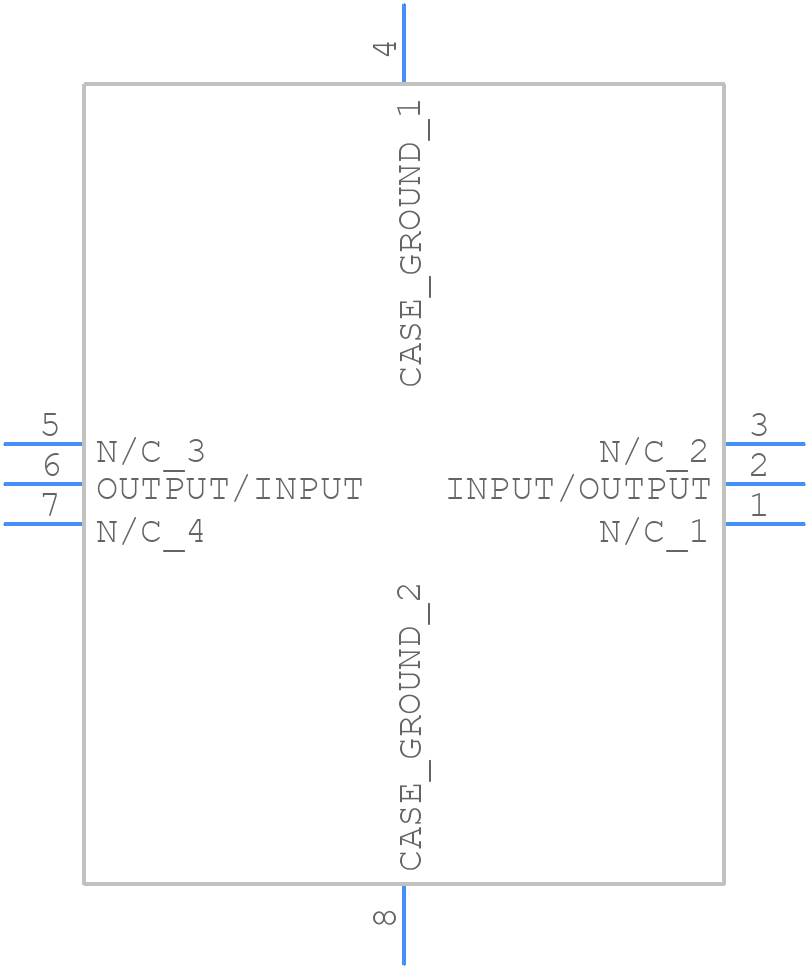

Use the download button to access the ASR433.42E-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ASR43,
or try a keyword search, such as SAW Resonators
