ASSR-1420-002E - Avago Technologies

Description: Broadcom 0.6 A Solid State Relay, PCB Mount MOSFET, 60 V Maximum Load

Download ASSR-1420-002E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

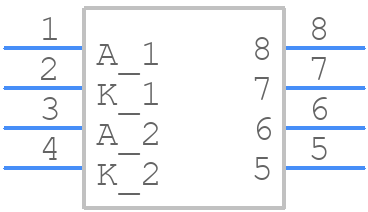

ASSR-1420-002E - Avago Technologies - PCB symbol
click to zoom
PCB Footprints

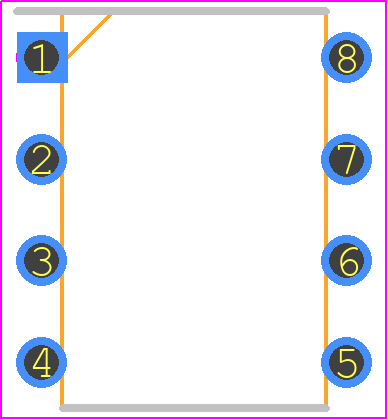

ASSR-1420-002E - Avago Technologies PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8-Pin DIP (300 Mil)-ren1
click to zoom
3D Models
ASSR-1420-002E - Avago Technologies - 3D model - Dual-In-Line Packages - 8-Pin DIP (300 Mil)-ren1
click to zoom

ASSR-1420-002E Details

  • Manufacturer Part Number:

    ASSR-1420-002E

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, PLASTIC, DIP-8

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.95.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    5.59

  • Additional Feature:

    CMOS COMPATIBLE

  • Configuration:

    COMPLEX

  • Control Current:

    0.003 A

  • Forward Current-Max:

    0.02 A

  • Input Type:

    DC

  • Isolation Voltage-Max:

    3750 V

  • JESD-609 Code:

    e3

  • Number of Elements:

    2

  • On-State Current-Max:

    0.6 A

  • On-state Resistance-Max:

    1 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Output Circuit Type:

    MOSFET

  • Overall Height:

    3.56 mm

  • Overall Length:

    9.65 mm

  • Terminal Finish:

    Tin (Sn)

ASSR-1420-002E Frequently Asked Questions (FAQs)

  • Broadcom recommends a 4-layer PCB with a solid ground plane, and a microstrip or stripline layout for the RF signals. A detailed layout guide is available from Broadcom upon request.
  • The ASSR-1420-002E requires a 3.3V power supply, and a bias current of 10mA to 20mA. A voltage regulator and bias-T network are recommended to ensure stable operation.
  • The ASSR-1420-002E is rated for operation from -40°C to +85°C, but derating may be required for high-power applications or extreme environmental conditions.
  • Common issues can often be resolved by checking the PCB layout, ensuring proper biasing and power supply, and verifying the input and output impedance matching. Broadcom also provides application notes and technical support for troubleshooting.
  • Yes, the ASSR-1420-002E is a sensitive device and requires proper ESD protection during handling and assembly. Broadcom recommends following standard ESD precautions, such as using an ESD wrist strap and anti-static packaging.
