Part Image

AST0250604 - Metz Connect

Description: METZ CONNECT - AST0250604 - Wire-To-Board Terminal Block, 5 mm, 6 Ways, 28 AWG, 14 AWG, 1 mm?, Push In Lock

Download AST0250604 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AST0250604 - Metz Connect - PCB symbol
click to zoom
PCB Footprints

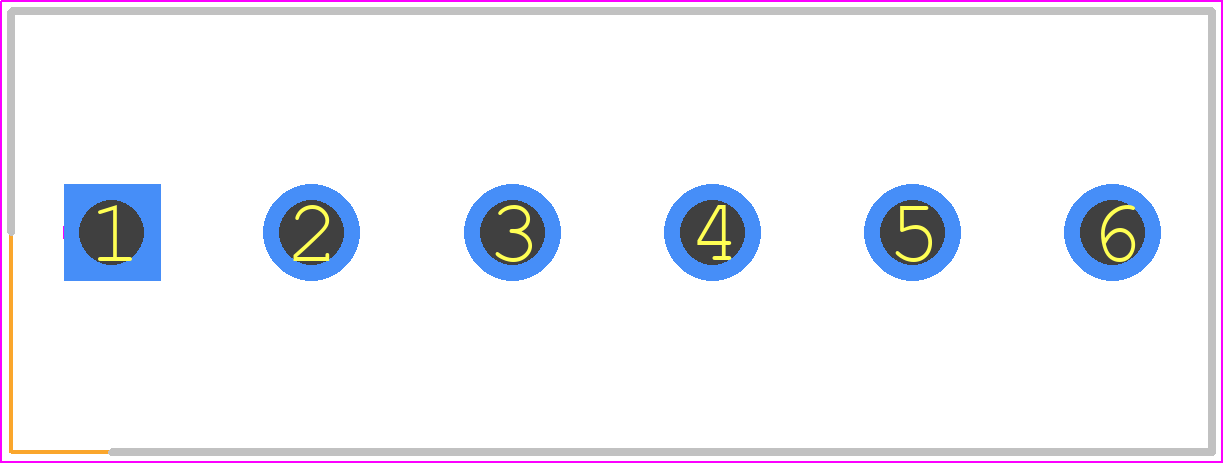

AST0250604 - Metz Connect PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - AST0250604
click to zoom
3D Models
AST0250604 - Metz Connect - 3D model - Header, Shrouded - Straight PTH Box - AST0250604
click to zoom

AST0250604 Details

  • Manufacturer Part Number:

    AST0250604

  • Part Life Cycle Code:

    Transferred

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    METZ CONNECT USA

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AST0250604 Overview

Use the download button to access the AST0250604 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AST02, or try a keyword search, such as Terminals and Terminal Blocks

Parts related to AST0250604

Showing 0 results
