AT13-2P-BM03 footprint, schematic symbol and 3D model by Amphenol

Symbol

click to zoom

PCB Footprints

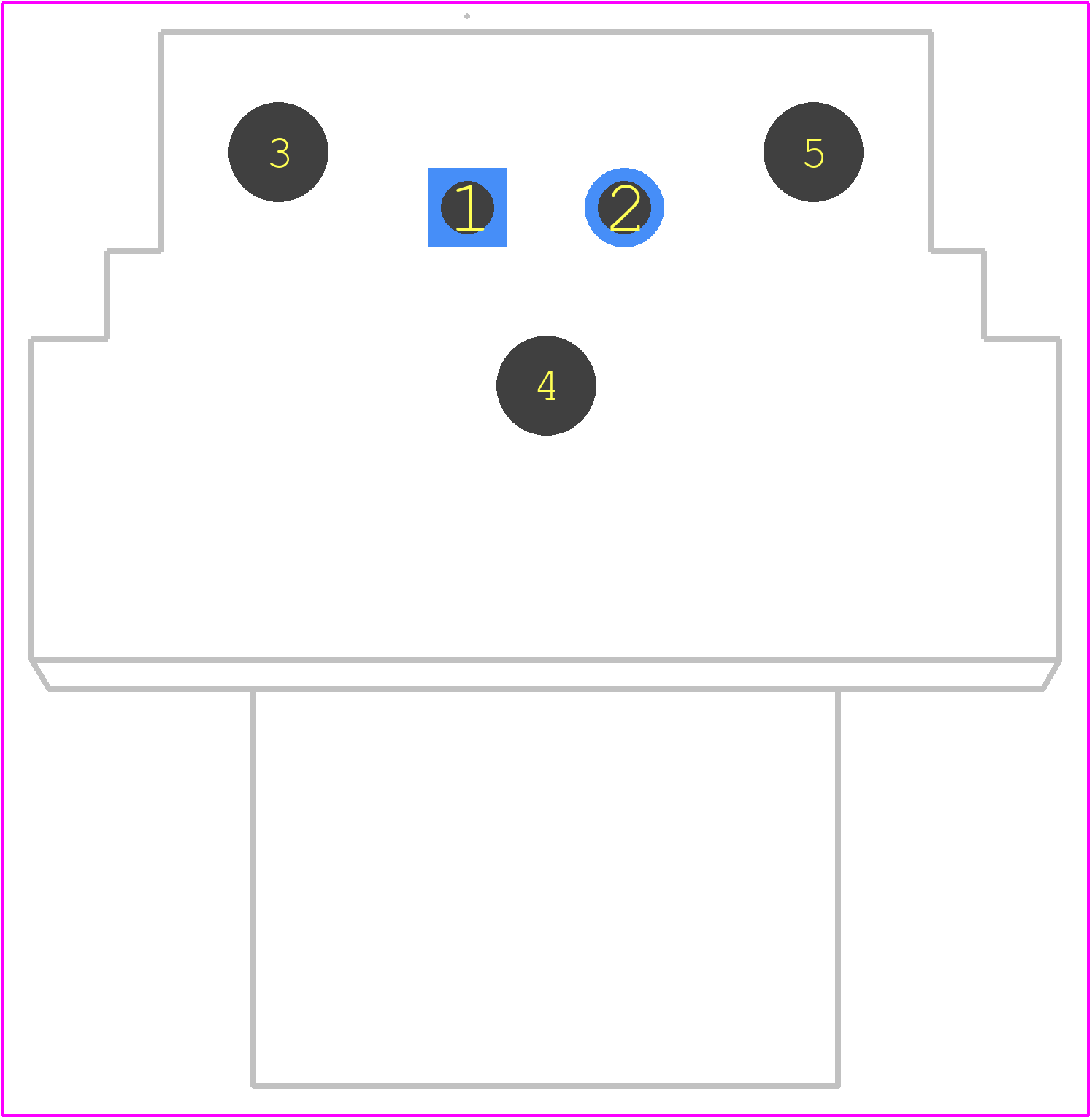

AT13-2P-BM03 - Amphenol PCB footprint - Other - Other - AT13-2P-BM03-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AT13-2P-BM03
Part Number AT13-2P-BM03
Manufacturer Amphenol
Pin Count 2
Part Category Connector
Package Category Other
Footprint Name Other - AT13-2P-BM03-3
Released Date Apr 10, 2026
Last Modified Date Apr 13, 2026 3:09 PM UTC
Pinout / Pin List Click Here (Member Only)

AT13-2P-BM03 Details

Manufacturer Part Number:
AT13-2P-BM03
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
Amphenol Corporation
YTEOL:
7.69
Body Breadth:
1.209 inch
Body Depth:
1.421 inch
Body Length:
1.386 inch
Body/Shell Style:
RECEPTACLE
Connector Type:
COMBINATION LINE CONNECTOR
Contact Gender:
FEMALE
Contact Style:
RND PIN-SKT
Empty Shell:
NO
Filter Feature:
NO
Insulator Material:
POLYETHYLENE
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD AND PANEL
Number of Rows Loaded:
1
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Rated Current (Signal):
13 A
Termination Type:
SOLDER
Total Number of Contacts:
2

AT13-2P-BM03 Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-0.7 Nm (5-7 in-lbs) to ensure secure connections.
Yes, the AT13-2P-BM03 is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) and is suitable for use in high-vibration environments.
The AT13-2P-BM03 is rated for operation in temperatures ranging from -40°C to 125°C and can withstand humidity up to 95% RH. However, it's essential to follow the recommended storage and operating conditions to ensure optimal performance.
The AT13-2P-BM03 has a mating cycle life of at least 500 cycles, ensuring reliable connections over an extended period.
While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate other wire sizes with proper termination and strain relief. However, it's essential to consult with Amphenol Corporation or a qualified engineer to ensure compatibility and reliability.
