AT25DF321A-SH-B - Renesas Electronics

Description: The AT25DF321A is a member of our System Enhancing class of code and data storage solutions. It is designed for all system memory tasks ranging from boot/code shadowing to data logging and includes the 256-byte page Erase feature that enables efficient, lower energy datalogging.

Download AT25DF321A-SH-B Model

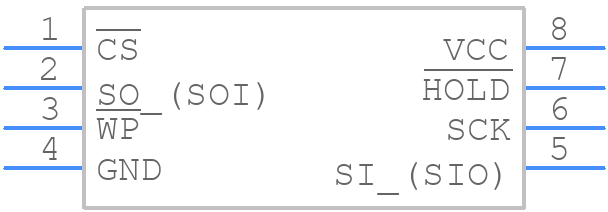

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AT25DF321A-SH-B - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 8S2 – EIAJ SOIC-1
click to zoom
3D Models
AT25DF321A-SH-B - Renesas Electronics  - 3D model - Small Outline Packages - 8S2 – EIAJ SOIC-1
click to zoom

AT25DF321A-SH-B Details

  • Manufacturer Part Number:

    AT25DF321A-SH-B

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC-W

  • Package Description:

    SOIC-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    41 Weeks, 6 Days

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    3

  • Clock Frequency-Max (fCLK):

    85 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    5.29 mm

  • Memory Density:

    33554432 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    4194304 words

  • Number of Words Code:

    4000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    4MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.16 mm

  • Serial Bus Type:

    DSPI

  • Standby Current-Max:

    0.00001 A

  • Supply Current-Max:

    0.02 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    5.24 mm

  • Write Protection:

    HARDWARE/SOFTWARE

AT25DF321A-SH-B Frequently Asked Questions (FAQs)

  • The AT25DF321A-SH-B has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on the usage and operating conditions.
  • The hold pin (HOLD#) is used to pause the serial communication between the microcontroller and the flash memory. When the HOLD# pin is low, the serial communication is paused, and when it is high, the communication resumes. You should connect the HOLD# pin to the microcontroller's hold signal or a GPIO pin to control the hold function.
  • The recommended power-up sequence is to apply the power supply voltage (VCC) first, followed by the clock signal (SCK), and then the chip select signal (CS#). This ensures that the device is properly initialized and ready for operation.
  • The WP# pin is used to protect the status register from being written. When the WP# pin is low, the status register is write-protected, and when it is high, the status register can be written. You should connect the WP# pin to a GPIO pin or a pull-up resistor to control the write protection.
  • The maximum clock frequency for the AT25DF321A-SH-B is 50 MHz. However, the actual clock frequency may vary depending on the system design and operating conditions.
