AT25DN011-SSHF-B - Renesas Electronics

Description: The AT25DN011 is a serial interface Flash memory device designed for use in a wide variety of high-volume consumer-based applications in which program code is shadowed from Flash memory into embedded or external RAM for execution. The flexible erase architecture of the AT25DN011, with its page erase granularity it is ideal for data storage as well, eliminating the need for additional data storage devices.

Download AT25DN011-SSHF-B Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this AT25DN011-SSHF-B model

Email notifications will be applied after download.

Send part feedback

Symbol

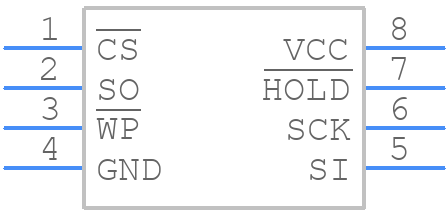

AT25DN011-SSHF-B - Renesas Electronics - PCB symbol

PCB Footprints

AT25DN011-SSHF-B - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 8S1 – JEDEC SOIC

3D Models

AT25DN011-SSHF-B - Renesas Electronics - 3D model - Small Outline Packages - 8S1 – JEDEC SOIC

Datasheet Download Datasheet
Stock & Prices Price & Stock for AT25DN011-SSHF-B
Part Number AT25DN011-SSHF-B
Manufacturer Renesas Electronics
Pin Count 8
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - 8S1 – JEDEC SOIC
Released Date Jun 23, 2022
Last Modified Date Jan 29, 2025 12:30 PM UTC
Pinout / Pin List Click Here (Member Only)

AT25DN011-SSHF-B Details

Manufacturer Part Number:
AT25DN011-SSHF-B
Manufacturer:
Renesas Electronics Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

AT25DN011-SSHF-B Overview

Use the download button to access the AT25DN011-SSHF-B schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AT25D, or try a keyword search, such as Flash Memories
