AT25FF161A-SSHNHD-T - Renesas Electronics

Description: 16Mbit, 1.65 V to 3.6 V SPI Serial Flash Memory with Multi-I/O Support, -40°C to +105°C

Download AT25FF161A-SSHNHD-T Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this AT25FF161A-SSHNHD-T model

Email notifications will be applied after download.

Send part feedback

Symbol

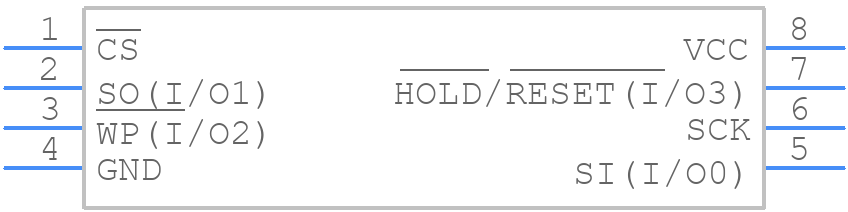

AT25FF161A-SSHNHD-T - Renesas Electronics - PCB symbol

PCB Footprints

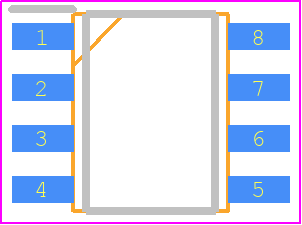

AT25FF161A-SSHNHD-T - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead Narrow Body JEDEC SOIC

3D Models

AT25FF161A-SSHNHD-T - Renesas Electronics - 3D model - Small Outline Packages - 8-Lead Narrow Body JEDEC SOIC

Datasheet Download Datasheet
Stock & Prices Price & Stock for AT25FF161A-SSHNHD-T
Part Number AT25FF161A-SSHNHD-T
Manufacturer Renesas Electronics
Pin Count 8
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - 8-Lead Narrow Body JEDEC SOIC
Released Date Mar 9, 2025
Last Modified Date Mar 9, 2025 5:59 AM UTC
Pinout / Pin List Click Here (Member Only)

AT25FF161A-SSHNHD-T Details

Manufacturer Part Number:
AT25FF161A-SSHNHD-T
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Philippines, Taiwan
ECCN Code:
EAR99
HTS Code:
8542.32.00.51
Manufacturer:
Renesas Electronics Corporation
YTEOL:
3
Memory IC Type:
FLASH

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

AT25FF161A-SSHNHD-T Overview

Use the download button to access the AT25FF161A-SSHNHD-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AT25F, or try a keyword search, such as Flash Memories
