AT25SF081B-SSHB-T - Renesas Electronics

Description: The AT25SF081B is a member of our standard class code and data storage solutions designed for 3V systems in which program code is shadowed from Flash memory into embedded or external RAM for execution.The architecture includes erase block sizes that are optimized to meet the needs of today's code and data storage applications and three security register pages for unique device serialization, system-level Electronic Serial Number (ESN) storage, locked key storage, etc. Universally compatible pinout and comma

Download AT25SF081B-SSHB-T Model

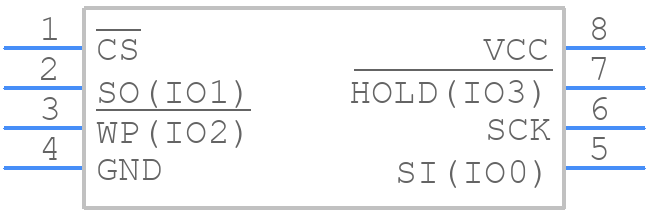

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AT25SF081B-SSHB-T - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 8S1, 8-lead (150 mil Narrow Body)
click to zoom
3D Models
AT25SF081B-SSHB-T - Renesas Electronics  - 3D model - Small Outline Packages - 8S1, 8-lead (150 mil Narrow Body)
click to zoom

AT25SF081B-SSHB-T Details

  • Manufacturer Part Number:

    AT25SF081B-SSHB-T

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-N

  • Package Description:

    SOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    5.3

  • Clock Frequency-Max (fCLK):

    108 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.925 mm

  • Memory Density:

    8388608 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    1048576 words

  • Number of Words Code:

    1000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    1MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    1.75 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.00003 A

  • Supply Current-Max:

    0.016 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    3.9 mm

  • Write Protection:

    HARDWARE/SOFTWARE

AT25SF081B-SSHB-T Frequently Asked Questions (FAQs)

  • The AT25SF081B-SSHB-T has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on the usage and operating conditions.
  • The hold pin (HOLD#) is an active low input that allows the device to be paused during a serial data transfer. When the hold pin is low, the device will ignore any serial data input and will not respond to any serial data output. You should connect the hold pin to VCC or use a pull-up resistor to ensure it is not accidentally triggered.
  • The recommended power-up sequence is to apply VCC first, followed by the input signals (SCK, SI, and CS#). This ensures that the device is properly initialized and ready for operation.
  • The optimal clock frequency depends on the specific application and system requirements. The AT25SF081B-SSHB-T supports clock frequencies up to 50 MHz, but you should consider factors such as system noise, signal integrity, and power consumption when selecting the clock frequency.
  • The WP# pin is an active low input that allows the device to be write-protected. When the WP# pin is low, the device will ignore any write commands and prevent accidental data modification. You can connect the WP# pin to VCC or use a pull-up resistor to enable write protection.
