AT25SF128A-MWUB-T - Renesas Electronics

Description: The AT25SF128A is a member of our standard class code and data storage solutions designed for 3V systems in which program code is shadowed from Flash memory into embedded or external RAM for execution.The architecture includes erase block sizes that are optimized to meet the needs of today's code and data storage applications and three security register pages for unique device serialization, system-level Electronic Serial Number (ESN) storage, locked key storage, etc. Universally compatible pinout and comma

Download AT25SF128A-MWUB-T Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this AT25SF128A-MWUB-T model

Email notifications will be applied after download.

Send part feedback

Symbol

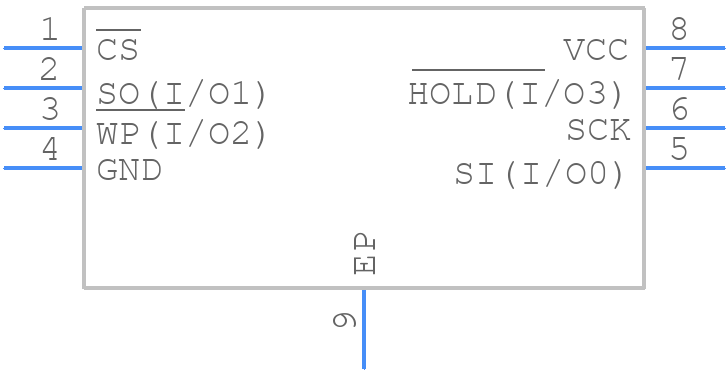

AT25SF128A-MWUB-T - Renesas Electronics - PCB symbol

PCB Footprints

AT25SF128A-MWUB-T - Renesas Electronics PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-PAD,6X8X0.8 MM DFN-D

3D Models

AT25SF128A-MWUB-T - Renesas Electronics - 3D model - Small Outline No-lead - 8-PAD,6X8X0.8 MM DFN-D

Datasheet Download Datasheet
Stock & Prices Price & Stock for AT25SF128A-MWUB-T
Part Number AT25SF128A-MWUB-T
Manufacturer Renesas Electronics
Pin Count 9
Part Category Integrated Circuit
Package Category Small Outline No-lead
Footprint Name Small Outline No-lead - 8-PAD,6X8X0.8 MM DFN-D
Released Date Jan 7, 2025
Last Modified Date Jan 29, 2025 12:30 PM UTC
Pinout / Pin List Click Here (Member Only)

AT25SF128A-MWUB-T Details

Manufacturer Part Number:
AT25SF128A-MWUB-T
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8542.32.00.51
Manufacturer:
Renesas Electronics Corporation
Memory IC Type:
FLASH

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

AT25SF128A-MWUB-T Overview

Use the download button to access the AT25SF128A-MWUB-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AT25S, or try a keyword search, such as Flash Memories
