AT27C512R-45PU - Microchip

Description: AT27C512R-45PU, OTP EPROM Memory 512kbit 64K x 8 bit 45ns 4.5 → 5.5 V 28-Pin PDIP

Download AT27C512R-45PU Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

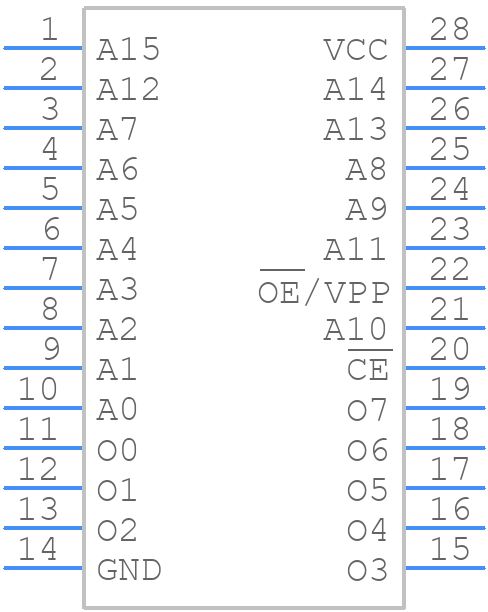

AT27C512R-45PU - Microchip - PCB symbol
click to zoom
PCB Footprints

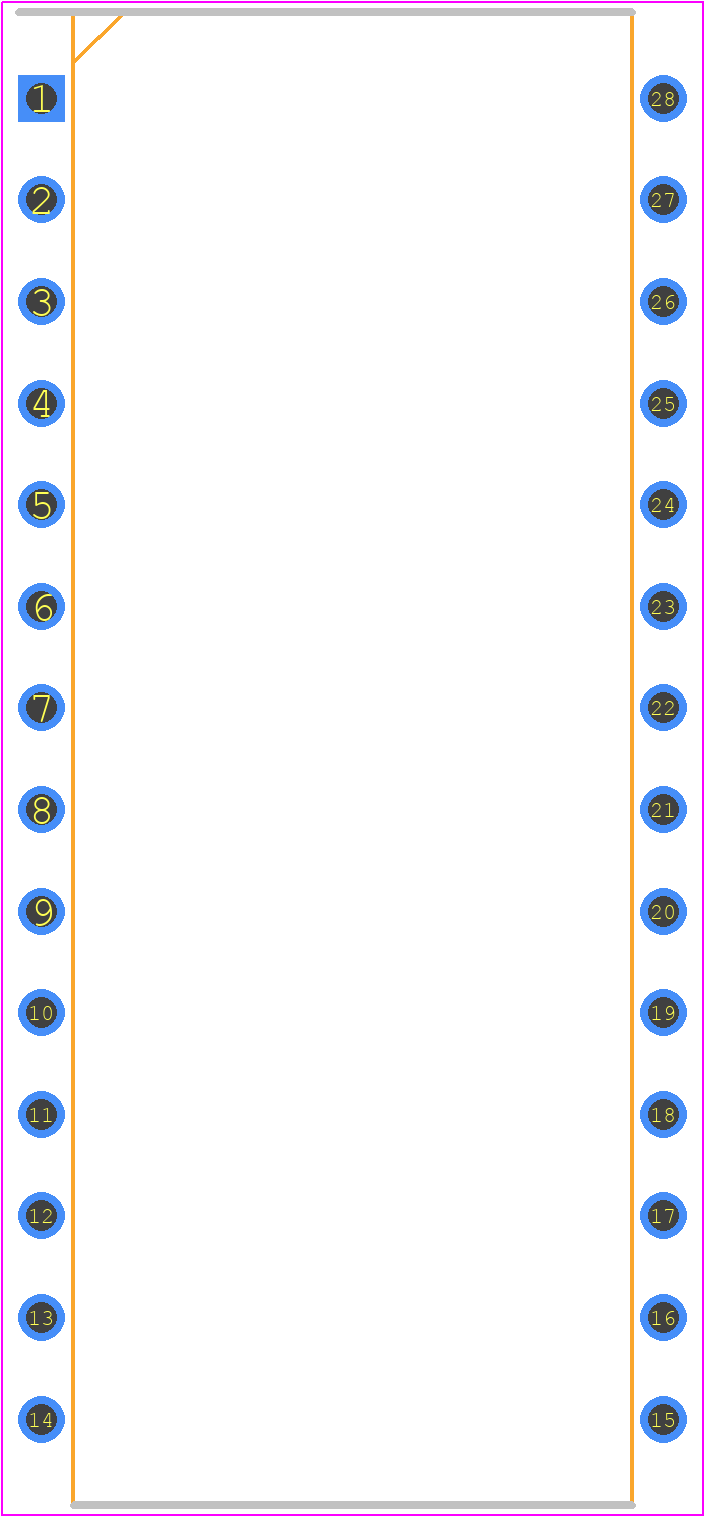

AT27C512R-45PU - Microchip PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 28P6
click to zoom
3D Models
AT27C512R-45PU - Microchip - 3D model - Dual-In-Line Packages - 28P6
click to zoom

AT27C512R-45PU Details

  • Manufacturer Part Number:

    AT27C512R-45PU

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    PDIP-28

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    4

AT27C512R-45PU Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the AT27C512R-45PU is -40°C to +85°C.
  • The power-up and power-down sequences for the AT27C512R-45PU should be handled according to the recommended power-up and power-down sequences outlined in the datasheet to prevent damage to the device.
  • The recommended storage temperature range for the AT27C512R-45PU is -65°C to +150°C.
  • No, the AT27C512R-45PU is not designed to operate in radiation-intensive environments. It is not radiation-hardened and may not function correctly in such environments.
  • The erase and programming cycles for the AT27C512R-45PU should be handled according to the recommended algorithms and protocols outlined in the datasheet to prevent damage to the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AT27C512R-45PU Overview

Use the download button to access the AT27C512R-45PU schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AT27C, or try a keyword search, such as OTP ROMs
