AT28C16E-15PC - Microchip

AT28C16E-15PC Details

• Manufacturer Part Number:

  AT28C16E-15PC

• Part Life Cycle Code:

  Active

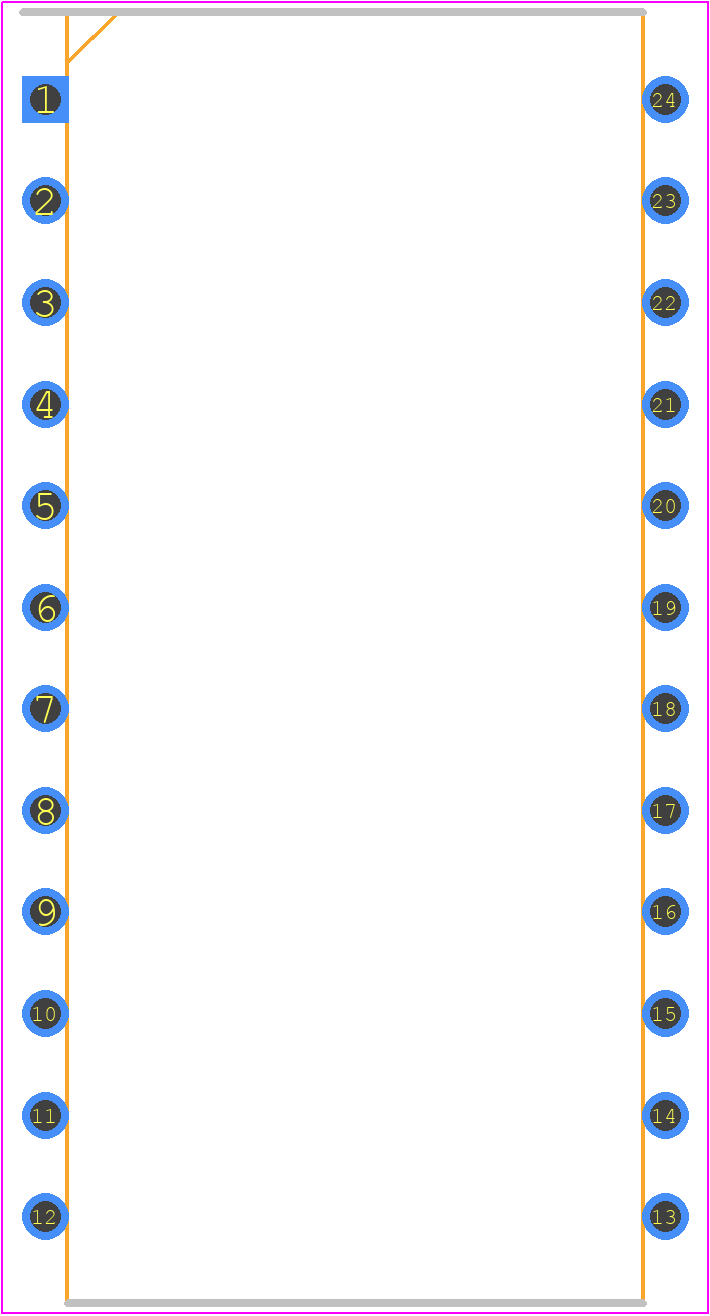

• Package Description:

  DIP-24

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.51

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  5

• Access Time-Max:

  150 ns

• Command User Interface:

  NO

• Data Polling:

  YES

• Data Retention Time-Min:

  10

• Endurance:

  100000 Write/Erase Cycles

• JESD-30 Code:

  R-PDIP-T24

• Length:

  31.9 mm

• Memory Density:

  16384 bit

• Memory IC Type:

  EEPROM

• Memory Width:

  8

• Number of Functions:

  1

• Number of Terminals:

  24

• Number of Words:

  2048 words

• Number of Words Code:

  2000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  70 °C

• Organization:

  2KX8

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP24,.6

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Parallel/Serial:

  PARALLEL

• Programming Voltage:

  5 V

• Seated Height-Max:

  5.59 mm

• Standby Current-Max:

  0.0001 A

• Supply Current-Max:

  0.03 mA

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  15.24 mm

• Write Cycle Time-Max (tWC):

  0.2 ms
