AT28C256-15DM/883-815 - Microchip

AT28C256-15DM/883-815 Details

• Manufacturer Part Number:

  AT28C256-15DM/883-815

• Rohs Code:

  No

• Part Life Cycle Code:

  Active

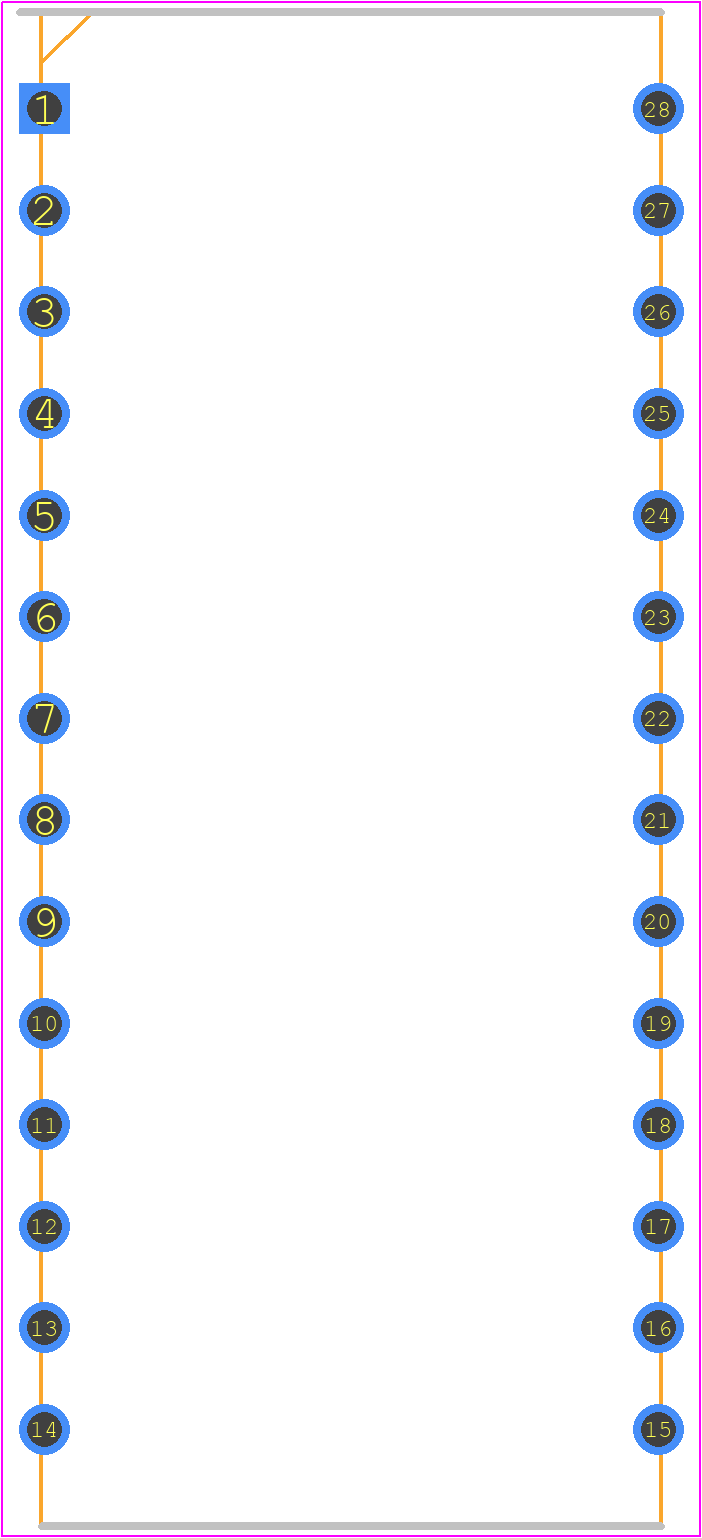

• Package Description:

  DIP-28

• Pin Count:

  28

• Manufacturer Package Code:

  CERDIP-28

• Country Of Origin:

  Philippines, Thailand

• ECCN Code:

  3A001.A.2.C

• HTS Code:

  8542.32.00.51

• Factory Lead Time:

  23 Weeks

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  14

• Access Time-Max:

  150 ns

• JESD-30 Code:

  R-GDIP-T28

• JESD-609 Code:

  e0

• Length:

  37.215 mm

• Memory Density:

  262144 bit

• Memory IC Type:

  EEPROM

• Memory Width:

  8

• Number of Functions:

  1

• Number of Terminals:

  28

• Number of Words:

  32768 words

• Number of Words Code:

  32000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Organization:

  32KX8

• Package Body Material:

  CERAMIC, GLASS-SEALED

• Package Code:

  DIP

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Parallel/Serial:

  PARALLEL

• Programming Voltage:

  5 V

• Screening Level:

  MIL-STD-883 Class C

• Seated Height-Max:

  5.72 mm

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  MILITARY

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  15.24 mm

• Write Cycle Time-Max (tWC):

  10 ms
