AT28HC256-12TU - Microchip

AT28HC256-12TU Details

• Manufacturer Part Number:

  AT28HC256-12TU

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

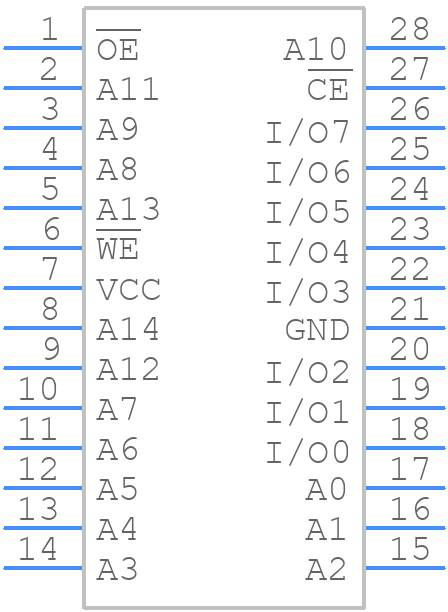

• Pin Count:

  28

• Manufacturer Package Code:

  TSOP-28

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.51

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  0

• Access Time-Max:

  120 ns

• Additional Feature:

  AUTOMATIC WRITE

• Command User Interface:

  NO

• Data Polling:

  YES

• Endurance:

  10000 Write/Erase Cycles

• JESD-30 Code:

  R-PDSO-G28

• JESD-609 Code:

  e3

• Length:

  11.8 mm

• Memory Density:

  262144 bit

• Memory IC Type:

  EEPROM

• Memory Width:

  8

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  28

• Number of Words:

  32768 words

• Number of Words Code:

  32000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  32KX8

• Output Characteristics:

  3-STATE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSOP1

• Package Equivalence Code:

  TSSOP28,.53,22

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE

• Page Size:

  64 words

• Parallel/Serial:

  PARALLEL

• Programming Voltage:

  5 V

• Qualification Status:

  Not Qualified

• Screening Level:

  MIL-STD-883

• Seated Height-Max:

  1.2 mm

• Standby Current-Max:

  0.0003 A

• Supply Current-Max:

  0.08 mA

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.55 mm

• Terminal Position:

  DUAL

• Toggle Bit:

  YES

• Width:

  8 mm

• Write Cycle Time-Max (tWC):

  10 ms
