AT30TS74-MA8M-T - Microchip

Description: MICROCHIP - AT30TS74-MA8M-T - TEMPERATURE SENSOR, DIGITAL, udfn

Download AT30TS74-MA8M-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

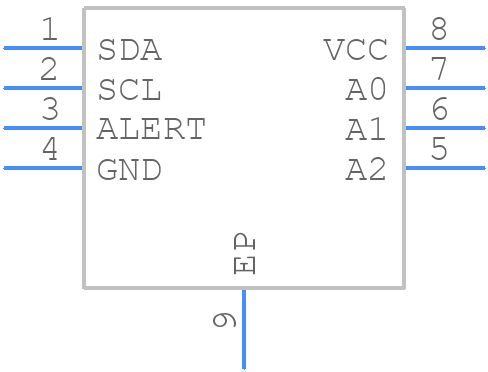

AT30TS74-MA8M-T - Microchip - PCB symbol
click to zoom
PCB Footprints
AT30TS74-MA8M-T - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - +udfn
click to zoom
3D Models
AT30TS74-MA8M-T - Microchip - 3D model - Small Outline No-lead - +udfn
click to zoom

AT30TS74-MA8M-T Details

  • Manufacturer Part Number:

    AT30TS74-MA8M-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    UDFN-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    5 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Accuracy-Max (Cel):

    3 Cel

  • Body Breadth:

    2 mm

  • Body Height:

    0.55 mm

  • Body Length or Diameter:

    3 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    12

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.8 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC8,.12,20

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Termination Type:

    SOLDER

AT30TS74-MA8M-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the AT30TS74-MA8M-T is -40°C to +125°C.
  • The AT30TS74-MA8M-T can be interfaced with a microcontroller using the I2C bus. The device has a 7-bit slave address, and the microcontroller can communicate with it by sending commands and data over the I2C bus.
  • The AT30TS74-MA8M-T has an accuracy of ±1°C over the operating temperature range of -20°C to +100°C, and ±2°C over the extended operating temperature range of -40°C to +125°C.
  • Yes, the AT30TS74-MA8M-T is suitable for high-reliability applications due to its high accuracy, low power consumption, and robust design. It is also automotive-grade and meets the AEC-Q100 standard.
  • The AT30TS74-MA8M-T does not require calibration. It is a digital temperature sensor that provides accurate temperature measurements without the need for calibration or trimming.
