AT32UC3A3256S-CTUT - Microchip

AT32UC3A3256S-CTUT Details

• Manufacturer Part Number:

  AT32UC3A3256S-CTUT

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

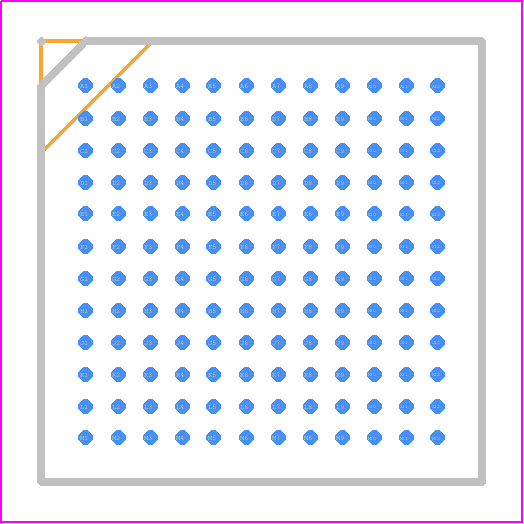

• Package Description:

  TFBGA-144

• Pin Count:

  144

• Manufacturer Package Code:

  TFBGA-144

• Country Of Origin:

  Taiwan

• ECCN Code:

  5A992.C

• HTS Code:

  8542.31.00.01

• Factory Lead Time:

  16 Weeks

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  14

• Has ADC:

  YES

• Additional Feature:

  IT ALSO OPERATES AT 3.3 V

• Address Bus Width:

  24

• Bit Size:

  32

• Boundary Scan:

  YES

• CPU Family:

  AVR RISC

• Clock Frequency-Max:

  50 MHz

• DAC Channels:

  YES

• DMA Channels:

  YES

• External Data Bus Width:

  16

• Format:

  FLOATING POINT

• Integrated Cache:

  YES

• JESD-30 Code:

  S-PBGA-B144

• JESD-609 Code:

  e1

• Length:

  11 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  3

• Number of External Interrupts:

  8

• Number of I/O Lines:

  110

• Number of Serial I/Os:

  4

• Number of Terminals:

  144

• Number of Timers:

  6

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  NO

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TFBGA

• Package Equivalence Code:

  BGA144,12X12,32

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, THIN PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• RAM (bytes):

  65536

• ROM (words):

  262144

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1.2 mm

• Speed:

  66 MHz

• Supply Voltage-Max:

  1.95 V

• Supply Voltage-Min:

  1.75 V

• Supply Voltage-Nom:

  1.85 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  11 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
