AT42QT1010-MAH - Microchip

Description: Capacitive Touch Screen 1Keys 8-Pin AT42QT1010-MAH, Spread-Spectrum Charge-Transfer Touch Screen Controller, 14 bit, 8-Pin UDFN

Download AT42QT1010-MAH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

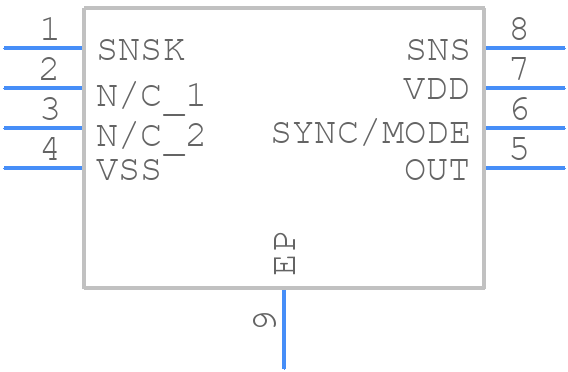

AT42QT1010-MAH - Microchip - PCB symbol
click to zoom
PCB Footprints
AT42QT1010-MAH - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-pin UDFN/USON_1
click to zoom
3D Models
AT42QT1010-MAH - Microchip - 3D model - Small Outline No-lead - 8-pin UDFN/USON_1
click to zoom

AT42QT1010-MAH Details

  • Manufacturer Part Number:

    AT42QT1010-MAH

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    USON-8

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microchip Technology Inc

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.65 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

AT42QT1010-MAH Frequently Asked Questions (FAQs)

  • A good PCB layout for the AT42QT1010-MAH involves keeping the sensor and the microcontroller close together, using a ground plane to reduce noise, and minimizing the length of the traces between the sensor and the microcontroller. It's also recommended to use a separate analog ground plane for the sensor and to avoid running digital signals near the sensor.
  • The AT42QT1010-MAH does not require calibration. It is a digital sensor that provides a calibrated output. However, it's recommended to perform a system-level calibration to compensate for any variations in the system, such as the microcontroller's ADC and the sensor's output.
  • The AT42QT1010-MAH can operate up to 400 kHz, but the recommended operating frequency is 100 kHz to 200 kHz for optimal performance.
  • Yes, the AT42QT1010-MAH is designed to operate in noisy environments. It has a high immunity to electromagnetic interference (EMI) and radio-frequency interference (RFI). However, it's still recommended to take precautions to minimize noise, such as using a ground plane and shielding the sensor and microcontroller.
  • The power consumption of the AT42QT1010-MAH is typically around 1.5 mA at 3.3V, but it can vary depending on the operating frequency and the microcontroller's power consumption.
