Part Image

AT42QT1011-MAHR - Microchip

Description: MICROCHIP - AT42QT1011-MAHR - CAPACITIVE TOUCH SENSOR, 1 CH, UDFN-8

Download AT42QT1011-MAHR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

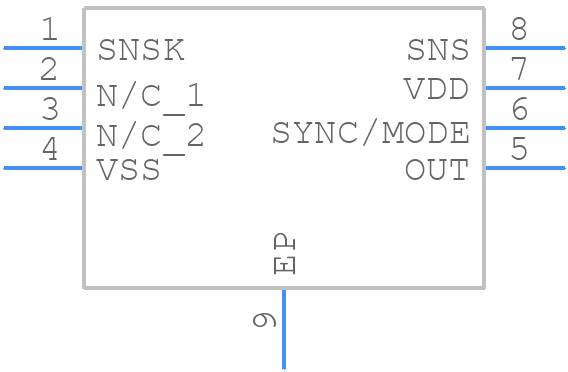

Symbol
AT42QT1011-MAHR - Microchip - PCB symbol
click to zoom
PCB Footprints
AT42QT1011-MAHR - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-pin UDFN/USON_1
click to zoom
3D Models
AT42QT1011-MAHR - Microchip - 3D model - Small Outline No-lead - 8-pin UDFN/USON_1
click to zoom

AT42QT1011-MAHR Details

  • Manufacturer Part Number:

    AT42QT1011-MAHR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    UDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    UDFN-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Additional Feature:

    SEATED HGT MAX

  • Body Breadth:

    1.95 mm

  • Body Height:

    0.6 mm

  • Body Length or Diameter:

    2 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    DIGITAL

  • Output Range:

    0.50-2.30V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Body Material:

    UNSPECIFIED

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    TS 16949

  • Sensors/Transducers Type:

    CAPACITIVE TOUCH SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.8 V

  • Surface Mount:

    YES

AT42QT1011-MAHR Frequently Asked Questions (FAQs)

  • A good PCB layout for the AT42QT1011-MAHR involves keeping the sensor and the microcontroller close together, using a ground plane to reduce noise, and minimizing the length of the traces between the sensor and the microcontroller. A 4-layer PCB with a dedicated ground plane is recommended.
  • The AT42QT1011-MAHR does not require calibration. It is a digital sensor that provides a calibrated output. However, the sensor may require a one-time initialization process to set the sensitivity and threshold values. Refer to the datasheet for more information.
  • The AT42QT1011-MAHR can operate at frequencies up to 400 kHz. However, the recommended operating frequency is 100 kHz to 200 kHz for optimal performance.
  • Yes, the AT42QT1011-MAHR can be used with a 3.3V microcontroller. The sensor's output is 5V tolerant, but it can also be used with 3.3V systems with proper level shifting.
  • To minimize EMI, use a shielded cable to connect the sensor to the microcontroller, keep the sensor and microcontroller close together, and use a ground plane on the PCB. Additionally, consider using EMI filters or shielding on the PCB.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AT42QT1011-MAHR Overview

Use the download button to access the AT42QT1011-MAHR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AT42Q, or try a keyword search, such as Other Sensors/Transducers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
