AT42QT1050-MMH - Microchip

Description: Capacitive Touch Sensors 5 Chnl Q ADC I2C

Download AT42QT1050-MMH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

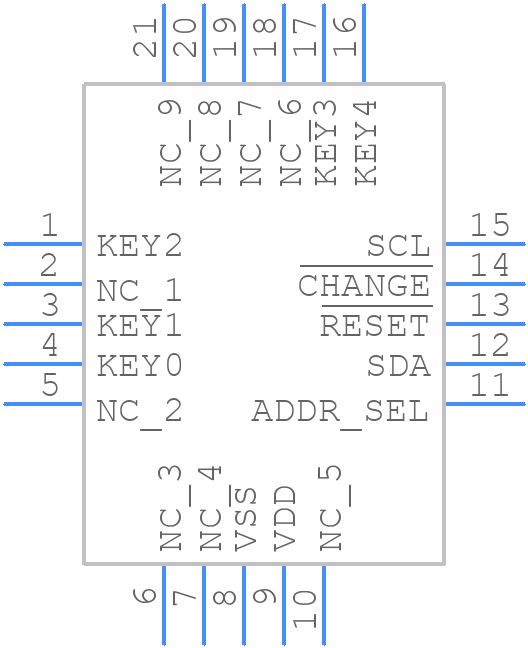

Symbol
AT42QT1050-MMH - Microchip - PCB symbol
click to zoom
PCB Footprints
AT42QT1050-MMH - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - AT42QT1040-MMHR-1
click to zoom
3D Models
AT42QT1050-MMH - Microchip - 3D model - Quad Flat No-Lead - AT42QT1040-MMHR-1
click to zoom

AT42QT1050-MMH Details

  • Manufacturer Part Number:

    AT42QT1050-MMH

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VQFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    VQFN-20

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Body Breadth:

    3 mm

  • Body Height:

    0.85 mm

  • Body Length or Diameter:

    3 mm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Range:

    0.60-2.60

  • Output Type:

    DIGITAL VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC20,.12SQ,18

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TOUCH SENSOR

  • Supply Voltage-Max:

    3.3 V

  • Supply Voltage-Min:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

AT42QT1050-MMH Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the AT42QT1050-MMH involves placing the sensor on a separate layer from the digital signals, using a ground plane to shield the sensor, and keeping the sensor traces as short as possible to minimize noise.
  • Calibration of the AT42QT1050-MMH involves adjusting the sensitivity and offset registers to match the specific application requirements. This can be done using the device's built-in calibration registers or through external calibration methods.
  • The AT42QT1050-MMH has an operating temperature range of -40°C to 125°C, making it suitable for a wide range of industrial and automotive applications.
  • Yes, the AT42QT1050-MMH has built-in noise filtering and shielding, making it suitable for use in high-noise environments. However, additional noise reduction techniques may be necessary in extremely noisy environments.
  • The AT42QT1050-MMH can be interfaced with a microcontroller using the I2C or SPI interface. The device's datasheet provides detailed information on the communication protocols and pinouts.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AT42QT1050-MMH Overview

Use the download button to access the AT42QT1050-MMH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AT42Q, or try a keyword search, such as Other Sensors/Transducers
