- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AT42QT1060-MMU
- Part Number AT42QT1060-MMU
- Manufacturer Microchip
- Pin Count 29
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - ATMEGA328P-MMHR-1
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
AT42QT1060-MMU Details
-
Manufacturer Part Number:
AT42QT1060-MMU
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
4 X 4 MM, 1MM HEIGHT, 0.45 MM PITCH, ROHS COMPLIANT, MLF-28
-
Country Of Origin:
Thailand
-
ECCN Code:
EAR99
-
HTS Code:
8542.31.00.01
-
Manufacturer:
Microchip Technology Inc
AT42QT1060-MMU Frequently Asked Questions (FAQs)
-
The recommended layout and routing for the AT42QT1060-MMU involves keeping the sensor and the microcontroller close together, using a ground plane to reduce noise, and using short and direct traces to connect the sensor to the microcontroller. It's also recommended to use a separate power plane for the sensor and the microcontroller.
-
The AT42QT1060-MMU requires a one-time calibration process to set the sensitivity and offset of the sensor. This can be done by applying a known touch pattern to the sensor and then using the microcontroller to read the sensor data and calculate the calibration coefficients.
-
The maximum operating frequency of the AT42QT1060-MMU is 400 kHz. However, the recommended operating frequency is 200 kHz to ensure reliable and accurate touch detection.
-
To handle noise and interference with the AT42QT1060-MMU, it's recommended to use a shielded cable to connect the sensor to the microcontroller, use a ground plane to reduce noise, and implement noise filtering algorithms in the microcontroller firmware.
-
Yes, the AT42QT1060-MMU can be used with a capacitive touch screen. However, it's recommended to use a dedicated touch screen controller chip to handle the touch screen functionality, and use the AT42QT1060-MMU as a standalone touch sensor for buttons or sliders.
Trust Checks
Community Provided
System Verified
Community Approved
AT42QT1060-MMU Overview

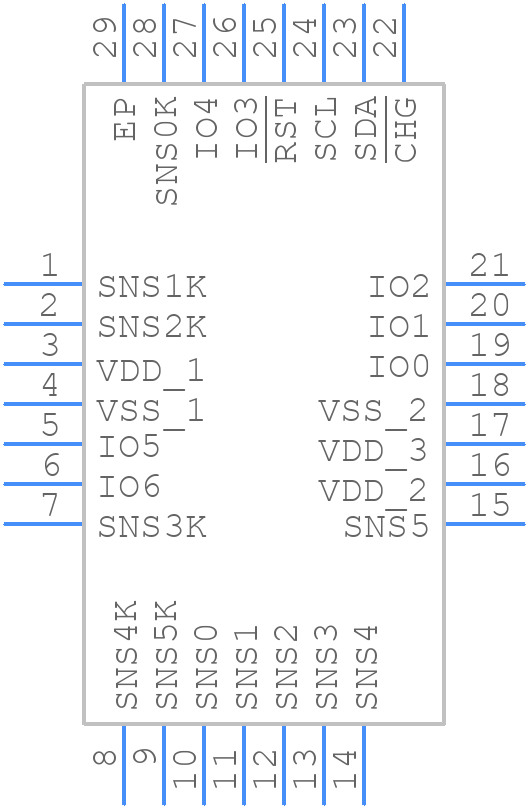

Use the download button to access the AT42QT1060-MMU schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AT42Q,
or try a keyword search, such as Other Sensors/Transducers
About Microchip
Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
