AT42QT1070-MMH - Microchip

Description: Capacitive Touch Sensors QTouch 7 Ch. Touch Sensor IC

Download AT42QT1070-MMH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

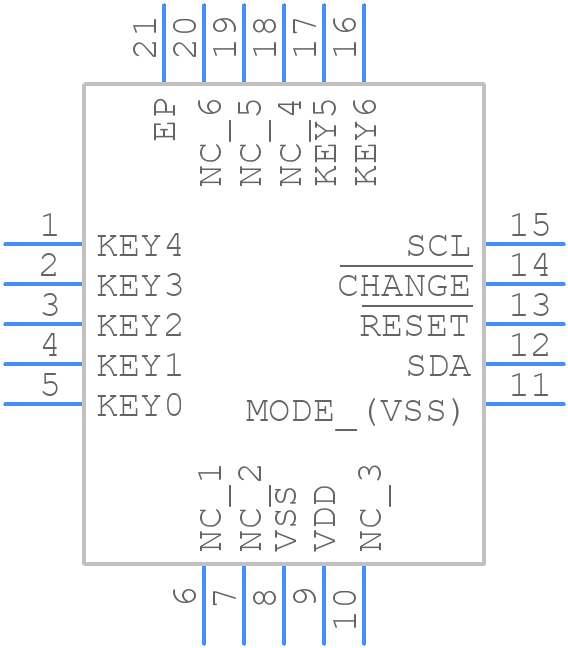

AT42QT1070-MMH - Microchip - PCB symbol
click to zoom
PCB Footprints
AT42QT1070-MMH - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - AT42QT1040-MMHR-1
click to zoom
3D Models
AT42QT1070-MMH - Microchip - 3D model - Quad Flat No-Lead - AT42QT1040-MMHR-1
click to zoom

AT42QT1070-MMH Details

  • Manufacturer Part Number:

    AT42QT1070-MMH

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, 0.85 MM HEIGHT, 0.45 MM PITCH, ROHS COMPLIANT, PLASTIC, VQFN-20

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    6

  • Body Breadth:

    3 mm

  • Body Height:

    0.8 mm

  • Body Length or Diameter:

    3 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    0.6-2.6V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    PROXIMITY SENSOR,CAPACITIVE

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Termination Type:

    SOLDER

AT42QT1070-MMH Frequently Asked Questions (FAQs)

  • A good PCB layout for the AT42QT1070-MMH involves keeping the sensor and the microcontroller close together, using a ground plane to reduce noise, and minimizing the length of the traces between the sensor and the microcontroller. A 4-layer PCB with a dedicated ground plane is recommended.
  • The AT42QT1070-MMH does not require calibration. It is a self-calibrating capacitive touch sensor that automatically adjusts to the environment and the touch panel. However, the sensor may require tuning of the sensitivity and threshold settings to optimize performance for a specific application.
  • The AT42QT1070-MMH has an operating temperature range of -40°C to +85°C. However, the device can be operated at temperatures above 85°C with reduced performance and accuracy.
  • No, the AT42QT1070-MMH requires a conductive touch panel to function. The sensor detects changes in capacitance caused by a user's touch, which requires a conductive material such as glass or a conductive coating on the touch panel.
  • The AT42QT1070-MMH provides raw touch data, which can be used to implement gesture recognition using a microcontroller or a dedicated gesture recognition IC. The sensor does not have built-in gesture recognition capabilities.
