AT42QT1070-SSU - Microchip

Description: QTouch 7-ch GuardChannel AKS Buttons I2C AT42QT1070-SSU, Touch Screen Controller Serial-I2C, 14-Pin SOIC

Download AT42QT1070-SSU Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

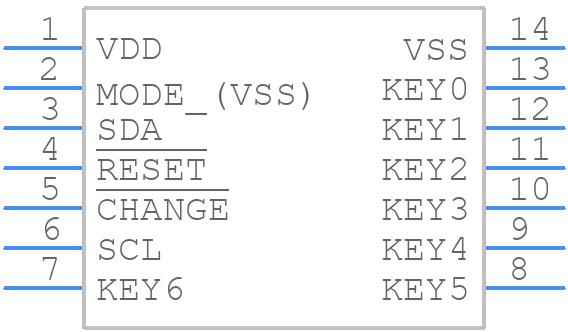

Symbol
AT42QT1070-SSU - Microchip - PCB symbol
click to zoom
PCB Footprints
AT42QT1070-SSU - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 14-PIN SOIC150-ren1
click to zoom
3D Models
AT42QT1070-SSU - Microchip - 3D model - Small Outline Packages - 14-PIN SOIC150-ren1
click to zoom

AT42QT1070-SSU Details

  • Manufacturer Part Number:

    AT42QT1070-SSU

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, ROHS COMPLIANT, PLASTIC, MS-012AB, SOIC-14

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Microchip Technology Inc

  • Body Breadth:

    3.895 mm

  • Body Height:

    1.55 mm

  • Body Length or Diameter:

    8.645 mm

  • Housing:

    PLASTIC

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    0.6-2.6V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    PROXIMITY SENSOR,CAPACITIVE

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.8 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

AT42QT1070-SSU Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the AT42QT1070-SSU involves placing the sensor on a separate PCB layer, using a solid ground plane, and keeping the sensor traces as short as possible to minimize noise and interference.
  • Calibration of the AT42QT1070-SSU involves adjusting the sensitivity and offset registers to optimize the sensor's performance for the specific application. This can be done using the device's built-in calibration registers or through external calibration methods.
  • The AT42QT1070-SSU has an operating temperature range of -40°C to +85°C, making it suitable for a wide range of applications, including industrial, automotive, and consumer electronics.
  • The AT42QT1070-SSU can be interfaced with a microcontroller using the I2C or SPI communication protocols. The device's datasheet provides detailed information on the communication protocols and pin configurations.
  • The AT42QT1070-SSU has a typical power consumption of 1.5mA in active mode and 1.5μA in sleep mode, making it suitable for battery-powered applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AT42QT1070-SSU Overview

Use the download button to access the AT42QT1070-SSU schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AT42Q, or try a keyword search, such as Proximity Sensors

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
