5 X 5 MM, 1 MM HEIGHT, 0.50 MM PITCH, ROHS COMPLIANT, MO-220VHHD-2, MLF-32
Country Of Origin:
Thailand
HTS Code:
8542.39.00.01
Manufacturer:
Microchip Technology Inc
AT42QT1110-MU Frequently Asked Questions (FAQs)
Microchip provides a recommended PCB layout in the AT42QT1110-MU datasheet, which includes guidelines for trace routing, component placement, and grounding. Additionally, it's recommended to follow general PCB design best practices for capacitive touch sensors, such as using a solid ground plane, minimizing noise, and keeping sensitive traces away from high-frequency signals.
The AT42QT1110-MU has an auto-calibration feature that adjusts the sensor's sensitivity and threshold levels during power-up. However, if custom calibration is required, Microchip provides a calibration guide in the datasheet, which involves adjusting the sensor's registers to optimize performance for specific touch panel designs and environmental conditions.
The AT42QT1110-MU has an operating temperature range of -40°C to +85°C, as specified in the datasheet. However, it's essential to note that the device's performance and accuracy may degrade at extreme temperatures, and additional testing may be required to ensure reliable operation in specific applications.
While the AT42QT1110-MU is designed to work with standard touch panel designs, it's possible to use it with non-standard designs. However, this may require custom calibration, tuning, and testing to ensure optimal performance. Microchip provides application notes and design guides to help with custom touch panel designs, and it's recommended to consult with Microchip's technical support team for guidance.
Microchip provides a troubleshooting guide in the datasheet, which covers common issues and their solutions. Additionally, it's recommended to check the device's configuration, touch panel design, and PCB layout for any errors or inconsistencies. If issues persist, it's best to consult with Microchip's technical support team for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AT42QT1110-MU Overview

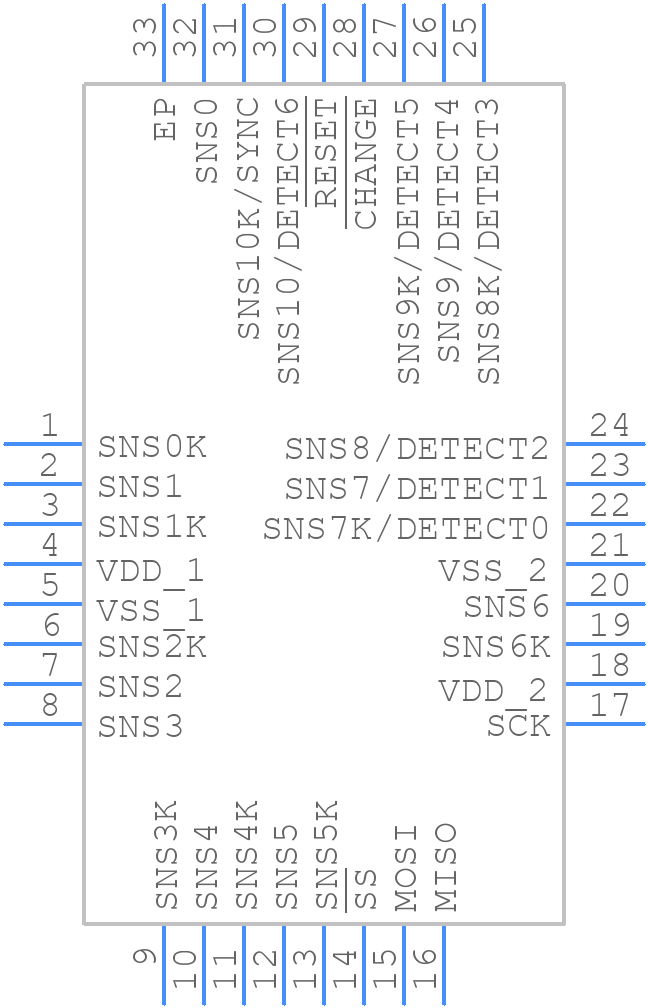

Use the download button to access the AT42QT1110-MU schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AT42Q,
or try a keyword search, such as Other Sensors/Transducers
