AT42QT1244-AU - Microchip

Description: AT42QT1244-AU, Touch Screen Controller

Download AT42QT1244-AU Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

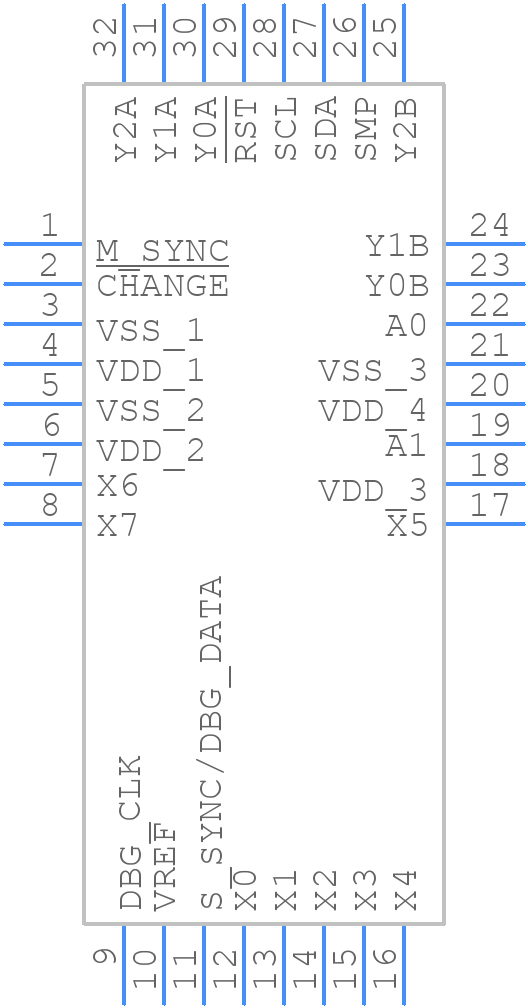

AT42QT1244-AU - Microchip - PCB symbol
click to zoom
PCB Footprints
AT42QT1244-AU - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - 32A
click to zoom
3D Models
AT42QT1244-AU - Microchip - 3D model - Quad Flat Packages - 32A
click to zoom

AT42QT1244-AU Details

  • Manufacturer Part Number:

    AT42QT1244-AU

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    TQFP-32

  • Country Of Origin:

    Philippines, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Body Breadth:

    7 mm

  • Body Height:

    1 mm

  • Body Length or Diameter:

    7 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Range:

    0.60-2.30V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TQFP32,.35SQ,32

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    CAPACITIVE TOUCH SENSOR

  • Supply Voltage-Max:

    5 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

AT42QT1244-AU Frequently Asked Questions (FAQs)

  • A good PCB layout for the AT42QT1244-AU involves keeping the sensor and the microcontroller close together, using a ground plane to reduce noise, and minimizing the length of the traces between the sensor and the microcontroller.
  • Calibration involves adjusting the sensor's sensitivity and offset to match the specific application. This can be done by taking multiple readings with the sensor in different positions and adjusting the sensitivity and offset accordingly.
  • The AT42QT1244-AU can operate in temperatures ranging from -40°C to 85°C, but the optimal operating temperature range is between 0°C to 70°C for best performance.
  • Yes, the AT42QT1244-AU has built-in noise filtering and can operate in noisy environments. However, it's still important to follow proper PCB layout and design practices to minimize noise and ensure reliable operation.
  • The AT42QT1244-AU can be interfaced with a microcontroller using I2C or SPI communication protocols. The specific interface will depend on the microcontroller and the application requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AT42QT1244-AU Overview

Use the download button to access the AT42QT1244-AU schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AT42Q, or try a keyword search, such as Other Sensors/Transducers
