AT42QT1481-AU - Microchip

Description: Capacitive Touch Screen 1-Wire 48 Key 44-Pin TQFP Tray

Download AT42QT1481-AU Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

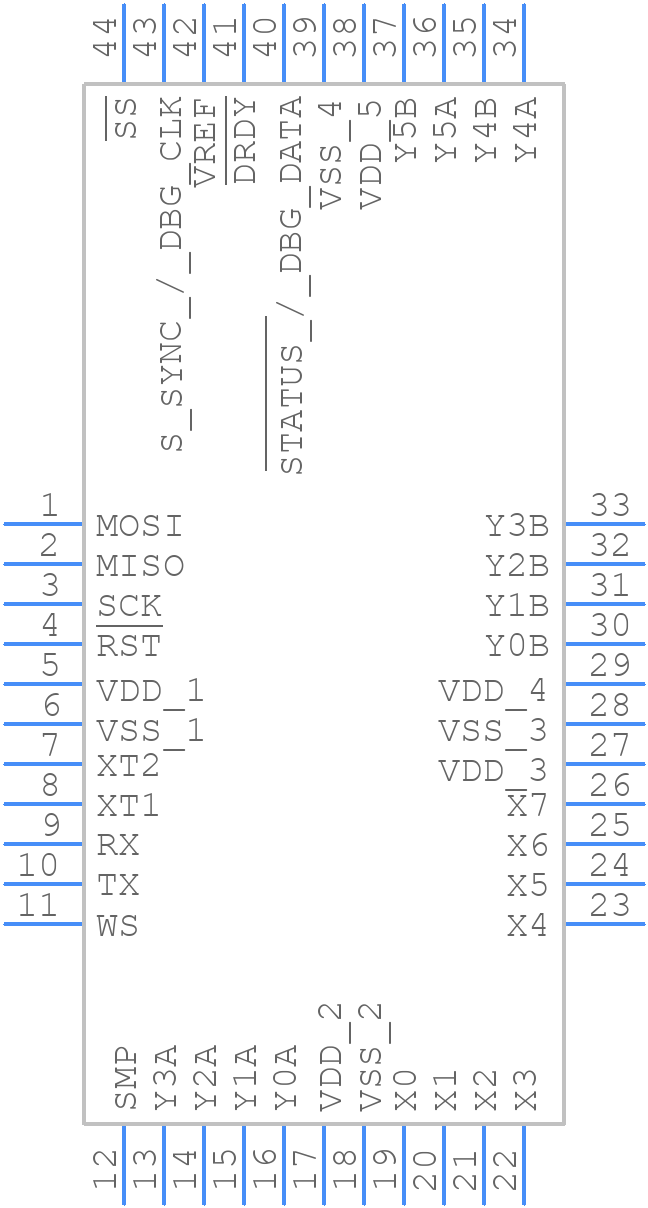

Symbol
AT42QT1481-AU - Microchip - PCB symbol
click to zoom

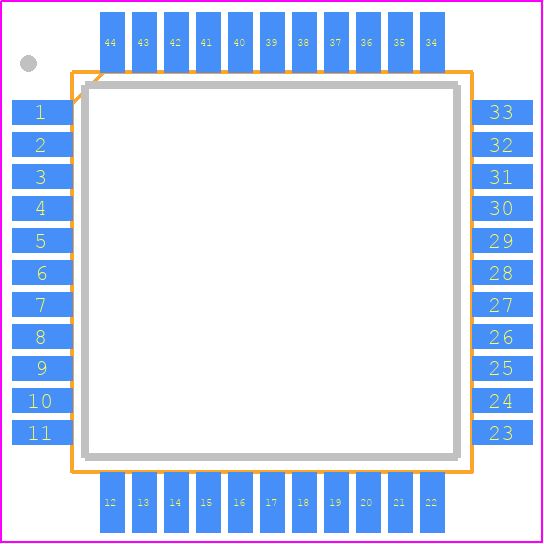

PCB Footprints
AT42QT1481-AU - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - 44-TQFP
click to zoom
3D Models
AT42QT1481-AU - Microchip - 3D model - Quad Flat Packages - 44-TQFP
click to zoom

AT42QT1481-AU Details

  • Manufacturer Part Number:

    AT42QT1481-AU

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFP-44

  • Pin Count:

    44

  • Manufacturer Package Code:

    TQFP-44

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Body Breadth:

    10 mm

  • Body Height:

    1.2 mm

  • Body Length or Diameter:

    10 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Range:

    0.6-4.2V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    QFP44,.47SQ,32

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TOUCH SENSOR

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

AT42QT1481-AU Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the AT42QT1481-AU datasheet, but it's also recommended to follow general guidelines for capacitive touch sensing PCB design, such as keeping the sensor traces short and away from noise sources, and using a solid ground plane.
  • Calibration involves adjusting the sensor's sensitivity and threshold settings to optimize performance for the specific application. Microchip provides a calibration guide in the datasheet, and also offers a calibration tool as part of their Qtouch Studio software.
  • Yes, but it may require custom tuning of the sensor's settings and calibration. The AT42QT1481-AU is designed to work with standard electrode shapes and sizes, but Microchip provides guidelines for custom electrode designs in the datasheet.
  • The AT42QT1481-AU has built-in noise filtering and interference rejection capabilities, including a noise canceller and a spread spectrum clock. Additionally, Microchip recommends following best practices for noise reduction in capacitive touch sensing designs, such as using a solid ground plane and shielding.
  • The AT42QT1481-AU is rated for operation up to 105°C, but its performance may degrade at higher temperatures. Microchip recommends consulting the datasheet for specific temperature-related specifications and guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AT42QT1481-AU Overview

Use the download button to access the AT42QT1481-AU schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AT42Q, or try a keyword search, such as Other Sensors/Transducers
