AT42QT2160-MMUR - Microchip

Description: MICROCHIP - AT42QT2160-MMUR - CAPACITIVE TOUCH SENSOR, I2C, VQFN-28

Download AT42QT2160-MMUR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

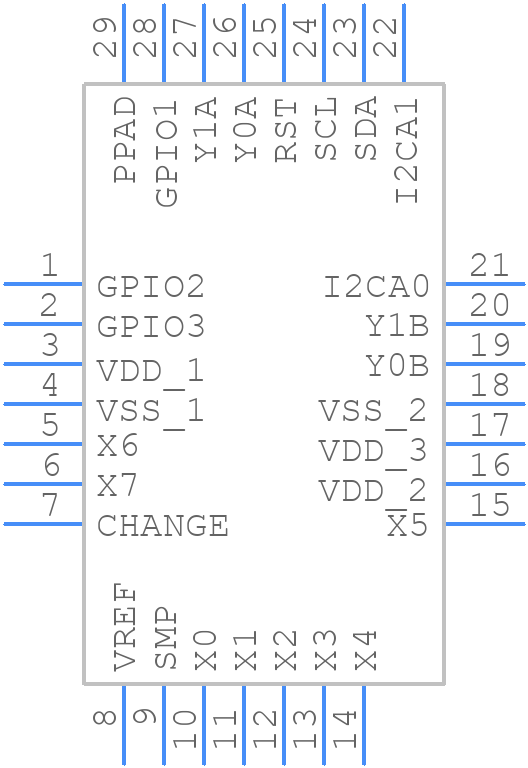

AT42QT2160-MMUR - Microchip - PCB symbol
click to zoom
PCB Footprints
AT42QT2160-MMUR - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VQFN 28
click to zoom
3D Models
AT42QT2160-MMUR - Microchip - 3D model - Quad Flat No-Lead - VQFN 28
click to zoom

AT42QT2160-MMUR Details

  • Manufacturer Part Number:

    AT42QT2160-MMUR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MLF-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    VQFN-28

  • Country Of Origin:

    South Korea

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Body Breadth:

    4 mm

  • Body Height:

    0.88 mm

  • Body Length or Diameter:

    4 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    DIGITAL

  • Output Range:

    0.20-4.20V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    CAPACITIVE TOUCH SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.8 V

  • Surface Mount:

    YES

AT42QT2160-MMUR Frequently Asked Questions (FAQs)

  • A good PCB layout for the AT42QT2160-MMUR involves keeping the sensor and the microcontroller close together, using a ground plane to reduce noise, and minimizing the length of the traces between the sensor and the microcontroller.
  • Calibration involves adjusting the sensor's sensitivity and offset to match the specific application. This can be done by taking multiple readings with the sensor in different states (e.g. touched and untouched) and adjusting the internal registers accordingly.
  • The maximum operating frequency of the AT42QT2160-MMUR is 400 kHz, but it can be adjusted to lower frequencies to reduce power consumption or improve noise immunity.
  • Noise and interference can be handled by using a low-pass filter, shielding the sensor and microcontroller, and using a ground plane to reduce electromagnetic interference (EMI).
  • Yes, the AT42QT2160-MMUR is designed to operate in harsh environments, including high temperatures, humidity, and vibration. However, the specific operating conditions may affect the sensor's performance and accuracy.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AT42QT2160-MMUR Overview

Use the download button to access the AT42QT2160-MMUR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AT42Q, or try a keyword search, such as Other Sensors/Transducers
