Part Image

AT86RF231-ZU - Microchip

Description: AT86RF231-ZU, RF Transceiver 2405 to 2480MHz, O-QPSK, 1.8 to 3.6V 32-Pin QFN

Download AT86RF231-ZU Model

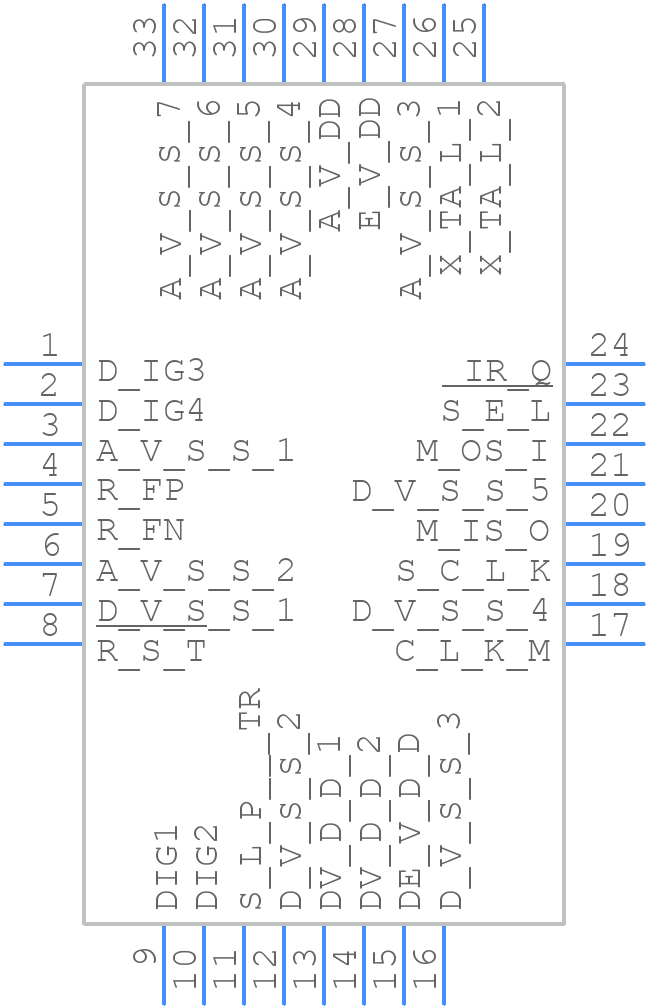

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AT86RF231-ZU - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - AT86RF231-ZU
click to zoom
3D Models
AT86RF231-ZU - Microchip  - 3D model - Quad Flat No-Lead - AT86RF231-ZU
click to zoom

AT86RF231-ZU Details

  • Manufacturer Part Number:

    AT86RF231-ZU

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    QFN

  • Package Description:

    5 X 5 MM, 0.90 MM HEIGHT, 0.50 MM PITCH, GREEN, MO-220VHHD-6, QFN-32

  • Pin Count:

    32

  • Reach Compliance Code:

    compliant

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Atmel Corporation

  • Risk Rank:

    2.58

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AT86RF231-ZU Overview

Use the download button to access the AT86RF231-ZU schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AT86R, or try a keyword search, such as Cellular Telephone Circuits
