AT89C5131A-S3SUM - Microchip

AT89C5131A-S3SUM Details

• Manufacturer Part Number:

  AT89C5131A-S3SUM

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

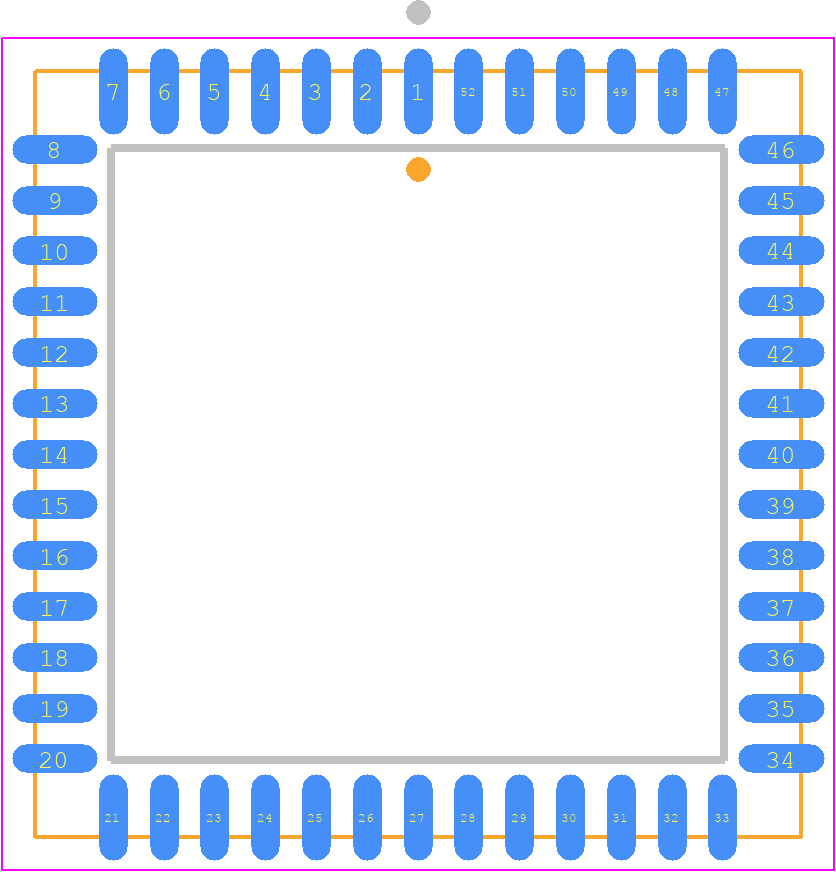

• Package Description:

  GREEN, PLASTIC, LCC-52

• Country Of Origin:

  Thailand

• ECCN Code:

  3A991.A.2

• HTS Code:

  8542.31.00.01

• Factory Lead Time:

  111 Weeks

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  0

• Has ADC:

  NO

• Additional Feature:

  ALSO OPERATES AT 2.7V MINIMUM SUPPLY

• Address Bus Width:

  16

• Bit Size:

  8

• Boundary Scan:

  YES

• CPU Family:

  8051

• Clock Frequency-Max:

  48 MHz

• DAC Channels:

  NO

• DMA Channels:

  NO

• External Data Bus Width:

  8

• Format:

  FLOATING-POINT

• Integrated Cache:

  NO

• JESD-30 Code:

  S-PQCC-J52

• JESD-609 Code:

  e3

• Length:

  19.15 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  3

• Number of External Interrupts:

  2

• Number of I/O Lines:

  34

• Number of Serial I/Os:

  1

• Number of Terminals:

  52

• Number of Timers:

  3

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCJ

• Package Equivalence Code:

  LDCC52,.8SQ

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• Qualification Status:

  Not Qualified

• RAM (bytes):

  1280

• ROM (words):

  32768

• ROM Programmability:

  FLASH

• Seated Height-Max:

  4.57 mm

• Speed:

  48 MHz

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  3.3 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  J BEND

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Width:

  19.15 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
