AT89C51RE2-SLSUM - Microchip

AT89C51RE2-SLSUM Details

• Manufacturer Part Number:

  AT89C51RE2-SLSUM

• Part Life Cycle Code:

  Active

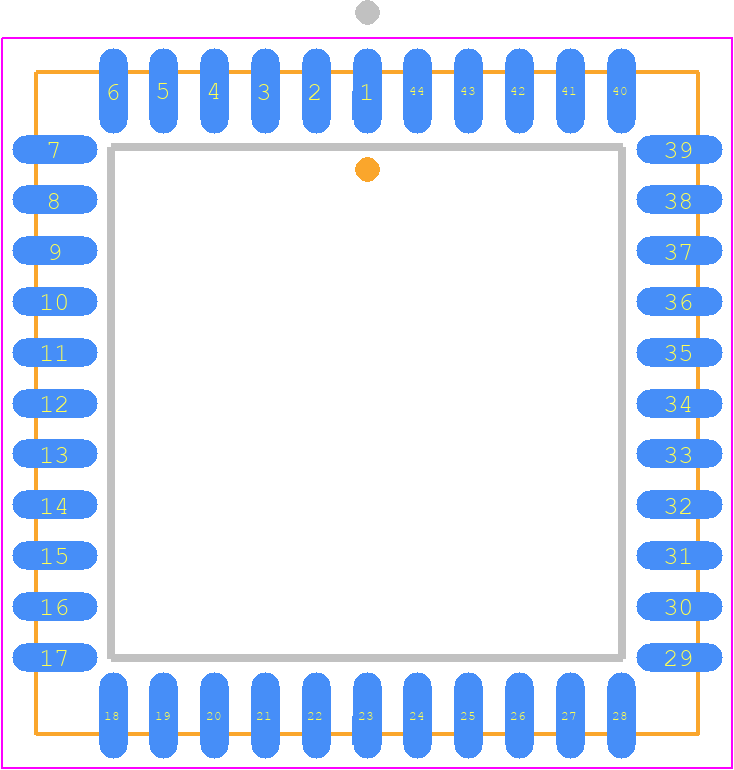

• Package Description:

  LCC-44

• HTS Code:

  8542.31.00.15

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  7.2

• Has ADC:

  NO

• Additional Feature:

  2.7V TO 5.5V @ 40MHZ

• Address Bus Width:

  16

• Bit Size:

  8

• Boundary Scan:

  NO

• Clock Frequency-Max:

  24 MHz

• DAC Channels:

  NO

• DMA Channels:

  NO

• External Data Bus Width:

  16

• Format:

  FIXED POINT

• Integrated Cache:

  NO

• JESD-30 Code:

  S-PQCC-J44

• Length:

  16.55 mm

• Low Power Mode:

  YES

• Number of External Interrupts:

  2

• Number of I/O Lines:

  34

• Number of Serial I/Os:

  1

• Number of Terminals:

  44

• Number of Timers:

  2

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  NO

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCJ

• Package Equivalence Code:

  LDCC44,.7SQ

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• RAM (bytes):

  8448

• ROM (words):

  131072

• ROM Programmability:

  FLASH

• Seated Height-Max:

  4.57 mm

• Speed:

  60 MHz

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  J BEND

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Width:

  16.55 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
