AT89LP2052-20PU - Microchip

Description: Atmel AT89LP2052-20PU, 8bit 8051 Microcontroller, 20MHz, 2 kB Flash, 20-Pin PDIP

Download AT89LP2052-20PU Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

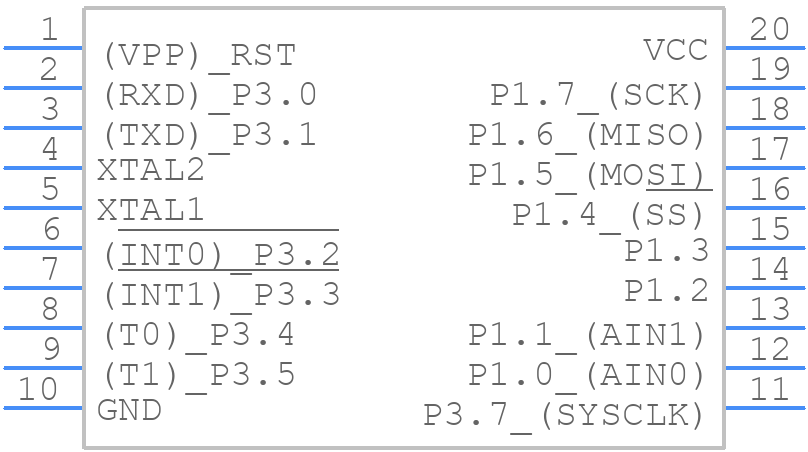

Symbol
AT89LP2052-20PU - Microchip - PCB symbol
click to zoom
PCB Footprints
AT89LP2052-20PU - Microchip PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 20p3-ren1
click to zoom
3D Models
AT89LP2052-20PU - Microchip - 3D model - Dual-In-Line Packages - 20p3-ren1
click to zoom

AT89LP2052-20PU Details

  • Manufacturer Part Number:

    AT89LP2052-20PU

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    PDIP-20

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Has ADC:

    NO

  • Bit Size:

    8

  • Boundary Scan:

    NO

  • CPU Family:

    8051

  • Clock Frequency-Max:

    20 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    R-PDIP-T20

  • JESD-609 Code:

    e3

  • Length:

    25.908 mm

  • Low Power Mode:

    YES

  • Number of External Interrupts:

    2

  • Number of I/O Lines:

    15

  • Number of Serial I/Os:

    1

  • Number of Terminals:

    20

  • Number of Timers:

    2

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    256

  • ROM (words):

    2048

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    5.334 mm

  • Speed:

    20 MHz

  • Supply Current-Max:

    5.5 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

AT89LP2052-20PU Frequently Asked Questions (FAQs)

  • The maximum clock frequency for the AT89LP2052-20PU is 20 MHz, as indicated by the '-20' in the part number. However, the device can operate at lower frequencies, and the clock frequency can be divided internally using the clock prescaler.
  • The AT89LP2052-20PU has an internal oscillator that can be configured using the FOSC (Frequency Oscillator Select) bits in the CKCON (Clock Control) register. The oscillator can be set to operate at 12 MHz, 9.6 MHz, or 4.5 MHz, or it can be disabled to allow an external clock source to be used.
  • The power consumption of the AT89LP2052-20PU depends on the operating frequency, voltage, and mode of operation. According to the datasheet, the typical active mode current consumption is around 10 mA at 20 MHz and 3V, while the idle mode current consumption is around 2 mA. The power-down mode current consumption is typically around 10 uA.
  • The AT89LP2052-20PU can be programmed using a variety of methods, including in-system programming (ISP) using a serial interface, or using a programming adapter such as the Atmel-ICE or the Microchip PICkit. The device can also be programmed using a third-party programmer or a custom programming solution.
  • The main difference between the AT89LP2052-20PU and the AT89LP2052-24PU is the maximum clock frequency. The AT89LP2052-20PU has a maximum clock frequency of 20 MHz, while the AT89LP2052-24PU has a maximum clock frequency of 24 MHz. The '-20' and '-24' in the part numbers indicate the maximum clock frequency for each device.
