AT91SAM9260B-QU - Microchip

AT91SAM9260B-QU Details

• Manufacturer Part Number:

  AT91SAM9260B-QU

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

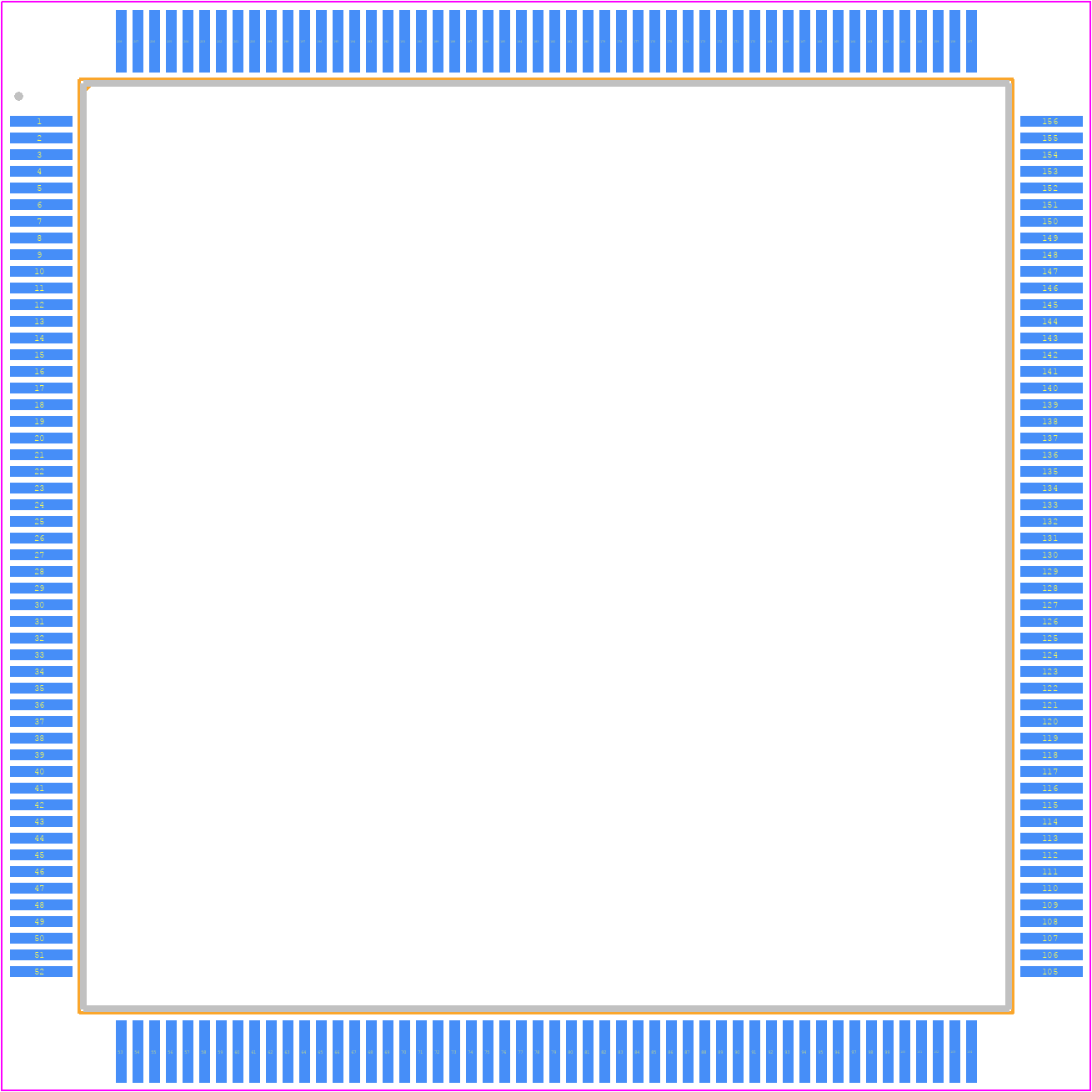

• Package Description:

  QFP-208

• Pin Count:

  208

• Manufacturer Package Code:

  PQFP-208

• Country Of Origin:

  Taiwan

• ECCN Code:

  3A991.A.2

• HTS Code:

  8542.31.00.01

• Factory Lead Time:

  17 Weeks

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  14

• Has ADC:

  YES

• Additional Feature:

  ALSO OPERATES AT 3.3V SUPPLY

• Address Bus Width:

  26

• Bit Size:

  32

• Boundary Scan:

  YES

• Clock Frequency-Max:

  50 MHz

• DAC Channels:

  NO

• DMA Channels:

  YES

• External Data Bus Width:

  32

• Format:

  FIXED POINT

• Integrated Cache:

  YES

• JESD-30 Code:

  S-PQFP-G208

• JESD-609 Code:

  e3

• Length:

  28 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  3

• Number of DMA Channels:

  22

• Number of External Interrupts:

  3

• Number of I/O Lines:

  96

• Number of Serial I/Os:

  1

• Number of Terminals:

  208

• On Chip Data RAM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  FQFP

• Package Equivalence Code:

  QFP208,1.2SQ,20

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, FINE PITCH

• Qualification Status:

  Not Qualified

• RAM (bytes):

  8192

• RAM (words):

  8192

• ROM (words):

  32768

• ROM Programmability:

  FLASH

• Seated Height-Max:

  4.1 mm

• Speed:

  180 MHz

• Supply Voltage-Max:

  1.95 V

• Supply Voltage-Min:

  1.65 V

• Supply Voltage-Nom:

  1.8 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  28 mm

• uPs/uCs/Peripheral ICs Type:

  MICROPROCESSOR, RISC
