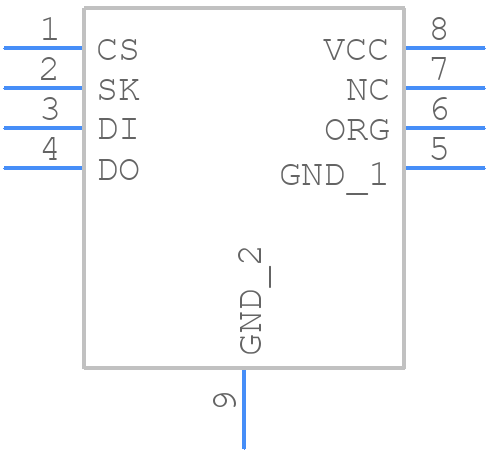

AT93C46DY6-YH-E - Microchip

AT93C46DY6-YH-E Details

• Manufacturer Part Number:

  AT93C46DY6-YH-E

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  UDFN-8

• Pin Count:

  8

• Manufacturer Package Code:

  UDFN-8

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.51

• Factory Lead Time:

  8 Weeks

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  19

• Additional Feature:

  ALSO OPERATES AT 1MHZ AT 2.7MIN AND AT 0.25MHZ AT 1.8MIN

• Alternate Memory Width:

  8

• Clock Frequency-Max (fCLK):

  2 MHz

• Data Retention Time-Min:

  100

• Endurance:

  1000000 Write/Erase Cycles

• I/O Type:

  SEPARATE

• JESD-30 Code:

  R-PDSO-N8

• JESD-609 Code:

  e4

• Length:

  3 mm

• Memory Density:

  1024 bit

• Memory IC Type:

  EEPROM

• Memory Width:

  16

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Ports:

  1

• Number of Terminals:

  8

• Number of Words:

  64 words

• Number of Words Code:

  64

• Operating Mode:

  SYNCHRONOUS

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  64X16

• Output Characteristics:

  3-STATE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC8,.12,20

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE, SHRINK PITCH

• Parallel/Serial:

  SERIAL

• Peak Reflow Temperature (Cel):

  260

• Programming Voltage:

  5 V

• Reverse Pinout:

  NO

• Seated Height-Max:

  0.6 mm

• Serial Bus Type:

  3-WIRE

• Standby Current-Max:

  0.000015 A

• Supply Current-Max:

  0.002 mA

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  2 mm

• Write Cycle Time-Max (tWC):

  5 ms

• Write Protection:

  HARDWARE
