AT97SC3204-U2A16-00 - Microchip

Description: Security ICs / Authentication ICs C7BHARI IND 44MM LPC COMPLIANCE

Download AT97SC3204-U2A16-00 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

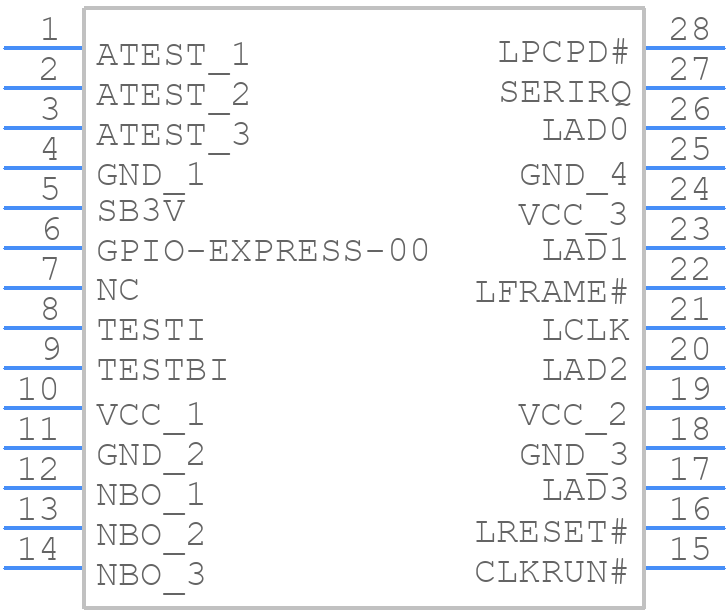

AT97SC3204-U2A16-00 - Microchip - PCB symbol
click to zoom
PCB Footprints
AT97SC3204-U2A16-00 - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 28X1 — 28-lead Thin TSSOP-1
click to zoom
3D Models
AT97SC3204-U2A16-00 - Microchip - 3D model - Small Outline Packages - 28X1 — 28-lead Thin TSSOP-1
click to zoom

AT97SC3204-U2A16-00 Details

  • Manufacturer Part Number:

    AT97SC3204-U2A16-00

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    TSSOP-28

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    3

  • Bit Size:

    8

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    9.7 mm

  • Low Power Mode:

    NO

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    CRYPTOGRAPHIC AUTHENTICATOR

AT97SC3204-U2A16-00 Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the AT97SC3204-U2A16-00 evaluation board user's guide, which includes guidelines for component placement, routing, and thermal management.
  • Microchip provides a configuration tool, the CryptoAuth Xplained Pro (CAXPro), which allows users to configure the AT97SC3204-U2A16-00 for their specific application, including setting up the cryptographic algorithms, key storage, and authentication protocols.
  • The AT97SC3204-U2A16-00 has an operating temperature range of -40°C to +85°C, but it's recommended to check the specific temperature range for the desired application and ensure that the device is properly thermally managed.
  • Microchip provides guidelines for securing the AT97SC3204-U2A16-00 against physical attacks, including using secure key storage, implementing anti-tamper mechanisms, and protecting the device from environmental attacks such as radiation and temperature extremes.
  • Yes, the AT97SC3204-U2A16-00 is a programmable device that allows users to implement custom cryptographic algorithms using the device's cryptographic co-processor and firmware development tools.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AT97SC3204-U2A16-00 Overview

Use the download button to access the AT97SC3204-U2A16-00 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AT97S, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
