AT97SC3205-H3M4200B - Microchip

Description: 8-bit Microcontrollers - MCU Prod STD Ind SPI TPM 4x4 32VQFN CEK Bulk - Prod STD Ind SPI TPM 4x4 32VQFN CEK Bulk

Download AT97SC3205-H3M4200B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

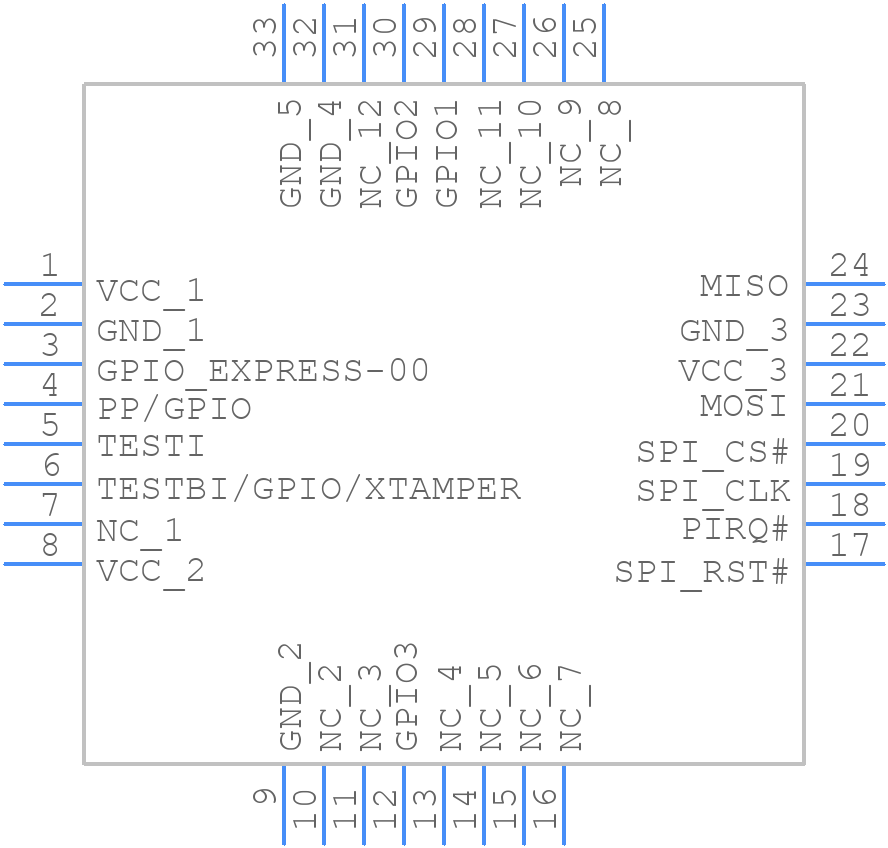

Symbol
AT97SC3205-H3M4200B - Microchip - PCB symbol
click to zoom
PCB Footprints
AT97SC3205-H3M4200B - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - AT97SC3205-H3M4200B
click to zoom
3D Models
AT97SC3205-H3M4200B - Microchip - 3D model - Quad Flat No-Lead - AT97SC3205-H3M4200B
click to zoom

AT97SC3205-H3M4200B Details

  • Manufacturer Part Number:

    AT97SC3205-H3M4200B

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VQFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    VQFN-32

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Bit Size:

    8

  • Boundary Scan:

    NO

  • Format:

    FIXED POINT

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    4 mm

  • Low Power Mode:

    YES

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.16SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    CRYPTOGRAPHIC AUTHENTICATOR

AT97SC3205-H3M4200B Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common ground point for the analog and digital grounds.
  • Use a reliable communication protocol such as SPI or I2C, and ensure that the clock frequency and data transfer rate are within the recommended specifications. Also, use a pull-up resistor on the SCL/SDA lines and a series resistor on the SCK line.
  • Power up the device in the following sequence: VDD, VDDIO, and then the clock signal. Ensure that the power supplies are stable and within the recommended voltage range before applying the clock signal.
  • Implement error detection and correction mechanisms such as CRC, checksum, or ECC. Also, use interrupts or status flags to detect and handle errors, and implement a retry mechanism to recover from errors.
  • The recommended operating temperature range is -40°C to +85°C. However, the device can operate up to +105°C with reduced performance and reliability.
