AT97SC3205-H3M4500B - Microchip

Description: 8-bit Microcontrollers - MCU Prod FF Ind SPI TPM 4x4 32VQFN SEK Bulk - Prod FF Ind SPI TPM 4x4 32VQFN CEK Bulk

Download AT97SC3205-H3M4500B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

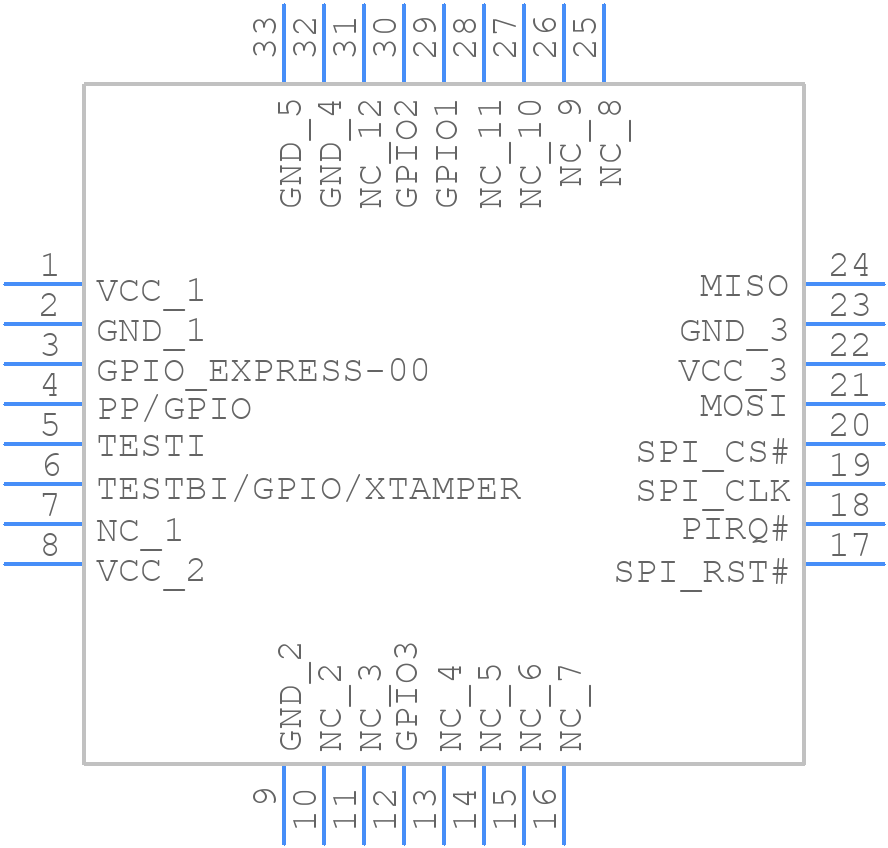

Symbol
AT97SC3205-H3M4500B - Microchip - PCB symbol
click to zoom
PCB Footprints
AT97SC3205-H3M4500B - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - AT97SC3205-H3M4500B
click to zoom
3D Models
AT97SC3205-H3M4500B - Microchip - 3D model - Quad Flat No-Lead - AT97SC3205-H3M4500B
click to zoom

AT97SC3205-H3M4500B Details

  • Manufacturer Part Number:

    AT97SC3205-H3M4500B

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VQFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    VQFN-32

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Bit Size:

    8

  • Boundary Scan:

    NO

  • Format:

    FIXED POINT

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    4 mm

  • Low Power Mode:

    YES

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.16SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    CRYPTOGRAPHIC AUTHENTICATOR

AT97SC3205-H3M4500B Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common ground point for the analog and digital grounds.
  • Use a reliable communication protocol such as SPI or I2C, and ensure that the clock frequency and data transfer rate are within the recommended specifications. Also, use a pull-up resistor on the SCL/SDA lines and a series resistor on the SCK line.
  • Power up the device in the following sequence: VDD, VDDIO, and then VREF. Ensure that VDD and VDDIO are powered up simultaneously, and VREF is powered up last.
  • Use a heat sink or a thermal pad to dissipate heat. Ensure good airflow around the device, and avoid blocking the airflow with components or obstacles. Also, use a thermal interface material to improve heat transfer.
  • Use 0.1uF to 1uF ceramic capacitors for decoupling, placed as close as possible to the power pins. Use a 10uF to 22uF electrolytic capacitor for bulk decoupling, placed near the power supply.
