AT97SC3205T-H3M4C00B - Microchip

Description: Security ICs / Authentication ICs Prod FF Ind I2C TPM 4x4 32VQFN CEK Bulk

Download AT97SC3205T-H3M4C00B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

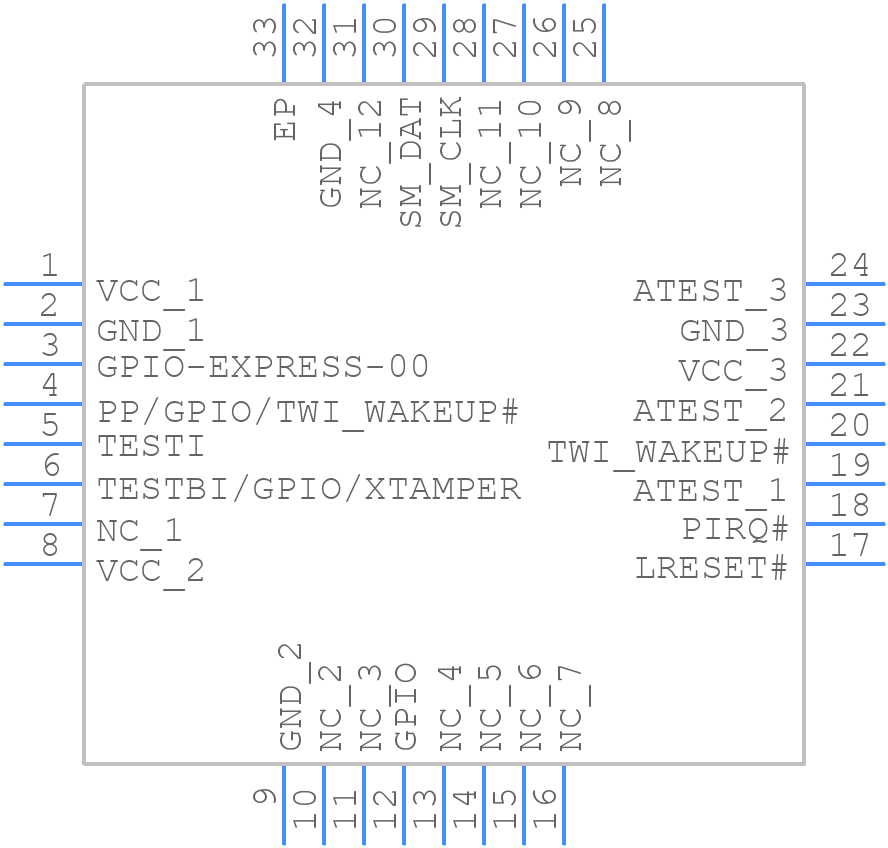

Symbol
AT97SC3205T-H3M4C00B - Microchip - PCB symbol
click to zoom
PCB Footprints
AT97SC3205T-H3M4C00B - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32M3
click to zoom
3D Models
AT97SC3205T-H3M4C00B - Microchip - 3D model - Quad Flat No-Lead - 32M3
click to zoom

AT97SC3205T-H3M4C00B Details

  • Manufacturer Part Number:

    AT97SC3205T-H3M4C00B

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VQFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    VQFN-32

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Bit Size:

    8

  • Boundary Scan:

    NO

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    S-PQCC-N32

  • Length:

    4 mm

  • Low Power Mode:

    NO

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.16SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    CRYPTOGRAPHIC AUTHENTICATOR

AT97SC3205T-H3M4C00B Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common ground point for the analog and digital grounds.
  • Use a high-quality, low-ESR capacitor (e.g., 10uF ceramic) for power decoupling, and place it as close to the device as possible. Ensure the power supply is stable and within the recommended voltage range (1.71V to 1.89V).
  • A high-quality, low-jitter clock source (e.g., a crystal oscillator or a high-quality clock generator) is recommended. The clock frequency should be within the recommended range (25MHz to 50MHz).
  • Implement secure boot mechanisms, use secure key storage, and enable secure authentication protocols (e.g., ECDSA, AES). Ensure secure firmware updates and use secure communication protocols (e.g., TLS, SSH).
  • Ensure good airflow around the device, and use a heat sink or thermal pad if necessary. Keep the device temperature within the recommended range (-40°C to 85°C) to ensure reliable operation.
