AT97SC3205T-X3A1C-10 - Microchip

Description: Secure MCU 8bit AVR RISC ROM 3.3V 28-Pin TSSOP T/R

Download AT97SC3205T-X3A1C-10 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

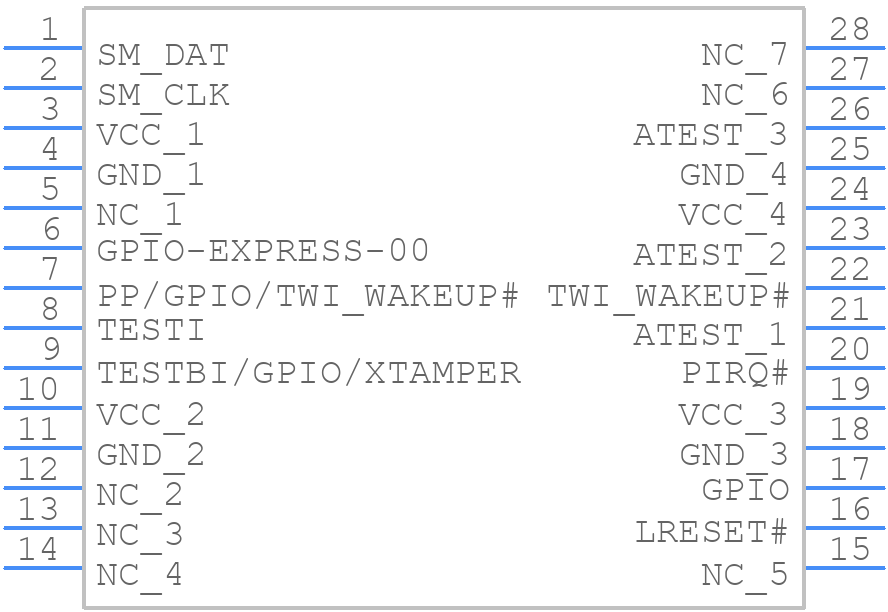

AT97SC3205T-X3A1C-10 - Microchip - PCB symbol
click to zoom
PCB Footprints
AT97SC3205T-X3A1C-10 - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP-28LD-PL-14
click to zoom
3D Models
AT97SC3205T-X3A1C-10 - Microchip - 3D model - Small Outline Packages - TSSOP-28LD-PL-14
click to zoom

AT97SC3205T-X3A1C-10 Details

  • Manufacturer Part Number:

    AT97SC3205T-X3A1C-10

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    TSSOP-28

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Bit Size:

    8

  • Boundary Scan:

    NO

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    9.7 mm

  • Low Power Mode:

    NO

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    CRYPTOGRAPHIC AUTHENTICATOR
