ATA6560-GAQW - Microchip

Description: High-speed CAN Transceiver with Standby Mode

Download ATA6560-GAQW Model

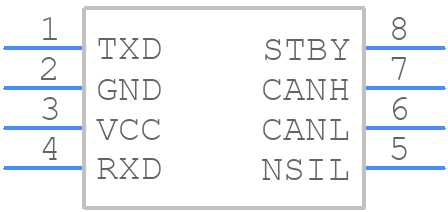

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ATA6560-GAQW - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - so-8
click to zoom
3D Models
ATA6560-GAQW - Microchip  - 3D model - Small Outline Packages - so-8
click to zoom

ATA6560-GAQW Details

  • Manufacturer Part Number:

    ATA6560-GAQW

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    7

  • Data Rate:

    5000 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.8 mm

  • Supply Current-Max:

    70 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN FD TRANSCEIVER

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

ATA6560-GAQW Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common mode filter to reduce EMI.
  • Set the CANMODE pin to logic high and configure the bitrate using the Bit Time Register (BTR). Refer to the datasheet for specific register settings.
  • The maximum cable length depends on the bitrate and transmission frequency. For CAN FD, the recommended cable length is up to 40 meters at 5 Mbps and up to 10 meters at 10 Mbps.
  • Use the built-in watchdog timer (WDT) feature. Configure the WDT period and timeout using the WDTCSR register. The WDT will reset the device if it times out.
  • Yes, the ATA6560-GAQW can be used in non-CAN applications, such as UART or LIN interfaces, by configuring the device in a non-CAN mode. Refer to the datasheet for specific configuration settings.
