ATA6562-GAQW0 - Microchip

Description: Microchip Technology CANTRX w. NSIL PIN + improved Wake(SO8)

Download ATA6562-GAQW0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

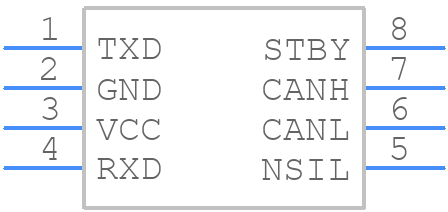

ATA6562-GAQW0 - Microchip - PCB symbol
click to zoom
PCB Footprints
ATA6562-GAQW0 - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead SOIC-ren2
click to zoom
3D Models
ATA6562-GAQW0 - Microchip - 3D model - Small Outline Packages - 8-Lead SOIC-ren2
click to zoom

ATA6562-GAQW0 Details

  • Manufacturer Part Number:

    ATA6562-GAQW0

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    26 Weeks

  • Date Of Intro:

    2017-06-19

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Data Rate:

    5000 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100; TS 16949

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    85 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN TRANSCEIVER

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

ATA6562-GAQW0 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ATA6562-GAQW involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the battery. A 4-layer PCB with a dedicated power plane is recommended.
  • To optimize power consumption, use the low-power mode, reduce the switching frequency, and minimize the number of active channels. Additionally, use a low-dropout regulator (LDO) to reduce power consumption in the analog circuitry.
  • The maximum operating temperature range for the ATA6562-GAQW is -40°C to +125°C. However, the device can operate up to 150°C for short periods of time.
  • To troubleshoot issues, use a logic analyzer or oscilloscope to monitor the device's signals. Check the power supply, clock, and reset signals. Verify that the device is properly configured and that the firmware is correct.
