ATA6570-GNQW1 - Microchip

Description: 14-Lead Plastic Small Outline(SL)

Download ATA6570-GNQW1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

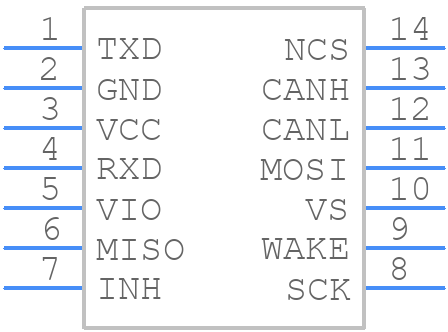

ATA6570-GNQW1 - Microchip - PCB symbol
click to zoom
PCB Footprints
ATA6570-GNQW1 - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 14 Lead Small Outline (SL) Narrow SOIC
click to zoom
3D Models
ATA6570-GNQW1 - Microchip - 3D model - Small Outline Packages - 14 Lead Small Outline (SL) Narrow SOIC
click to zoom

ATA6570-GNQW1 Details

  • Manufacturer Part Number:

    ATA6570-GNQW1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    14

  • Manufacturer Package Code:

    SOIC-14

  • Country Of Origin:

    Mainland China, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    7

  • Additional Feature:

    Also Operates as CAN Transceiver with data rate up to 1000kbps

  • Data Rate:

    5000 Mbps

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Screening Level:

    AEC-Q100; TS 16949

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    1.5 mA

  • Supply Voltage-Nom:

    13 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN FD TRANSCEIVER

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm
